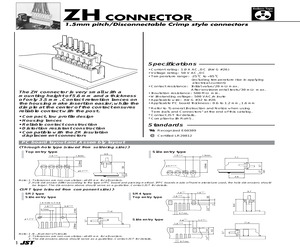

ZHR-4-K JST ZHR-4-K is a 4 position, single row, 1.50mm pitch receptacle housing for crimp contacts. It features a free hanging (in-line) mounting style and is rated for 1A and 50V.
Mfr Part #:

ZHR-4-K

Available from 1 distributors
Mfr Name: Jst Manufacturing
Jst Manufacturing
JST ZHR-4-K is a 4 position, single row, 1.50mm pitch receptacle housing for crimp contacts. It features a free hanging (in-line) mounting style and is rated for 1A and 50V.
✓ Total Stock: 1,213 pcs
$ Price Range: $0.04 - $0.17

ZHR-4-K Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Tomark Electronics Ltd ✓
Non-Authorised Inventory information
1,213 pcs
On Request
1213 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

ZHR-4-K Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
AEC Qualified
Automotive Grade
Color
Connector Type
Contact Resistance
Contact Termination
Contact Type
Current Rating
Industrial Grade
Insulation Resistance
Lead Spacing
Lead Style
Medical Grade
Military Grade
Mounting Type
Number of Positions
Number of Rows
Operating Temperature
Pitch
SVHC Present
Termination Style
Voltage Rating
Withstanding Voltage
View Similar Products (0)

ZHR-4-K Description

Short technical summary and product information.

The JST ZHR-4-K is a 4-position receptacle housing from the ZH series, designed for wire-to-board connections with a 1.50mm pitch. This single-row housing accepts female socket crimp contacts and is intended for free hanging (in-line) mounting, making it suitable for compact and space-constrained applications.



Electrical ratings include a maximum current of 1A and a maximum voltage of 50V. The housing provides reliable performance with a contact resistance of 10mΩ maximum and insulation resistance of 1000MΩ minimum. It can withstand 500V AC for one minute. The operating temperature range is -25°C to 85°C.



The housing accommodates wire gauges from AWG 28 to 22 with an insulation diameter of 1.0mm to 1.6mm. The black housing is made for use with JST ZH series crimp contacts, ensuring a secure and stable connection.

ZHR-4-K Quick Information

Product Type: Rectangular Connector Housing
Series: ZH
Canonical Name: JST ZH Series 4 Position 1.50mm Pitch Receptacle Housing
Subcategory: Wire-to-Board Connector Housing

ZHR-4-K Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Yes

ZHR-4-K Estimated Pricing

Qty Low High
1+ $0.17 $0.17
10+ $0.08 $0.08
25+ $0.07 $0.07
100+ $0.06 $0.06
250+ $0.05 $0.05
1,000+ $0.04 $0.04
10,000+ $0.04 $0.04

Estimated market price range - modelled values for guidance only, not live distributor offers.

ZHR-4-K Features

  • 4 position single row receptacle housing.
  • 1.50mm pitch for compact designs.
  • Rated for 1A and 50V maximum.
  • Free hanging in-line mounting style.
  • Accepts AWG 28 to 22 wire.

ZHR-4-K Applications

  • Wire-to-board connections in compact devices.
  • Consumer electronics and small appliances.
  • Automotive interior harnesses.
  • Industrial control and sensor interfaces.

ZHR-4-K FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the ZHR-4-K have?

The ZHR-4-K has 4 positions in a single row.

What is the pitch of the ZHR-4-K?

The pitch is 1.50mm.

What is the current rating of the ZHR-4-K?

The maximum current rating is 1A.

What is the voltage rating of the ZHR-4-K?

The maximum voltage rating is 50V.

What mounting type does the ZHR-4-K use?

It uses free hanging (in-line) mounting.

What wire gauge is compatible with the ZHR-4-K?

It accepts AWG 28 to 22 wire.

What is the operating temperature range of the ZHR-4-K?

The operating temperature range is -25°C to 85°C.
