| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
20 pcs
|
20 pcs | On Request | 1 | On Request | On Request | On Request | On Request | 2026-02-16 21:33:16 |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Mounting Type | |
| Operating Temperature | |
| SVHC Present | |
| Storage Temperature |

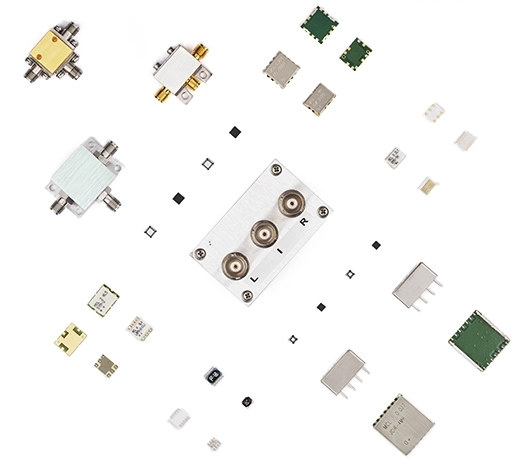

The Mini-Circuits ZFM-2000+ is a coaxial frequency mixer with a wide operating frequency range from 100 MHz to 2000 MHz. It is designed for applications requiring efficient signal mixing.
This mixer offers a typical conversion loss of 7.49 dB at mid-band and 9.5 dB over the total range. It provides good LO-RF isolation of 37 dB typically at mid-band and 20 dB over the total range, along with LO-IF isolation of 30 dB typically at mid-band and 20 dB over the total range. The device operates with a LO power level of +7 dBm and has a 1 dB compression point of +1 dBm typically.
With a rugged shielded case and SMA connectors, the ZFM-2000+ is suitable for various applications including VHF/UHF, cellular, GPS, and instrumentation. It operates within an ambient temperature range of -55°C to 100°C and has a maximum RF power rating of 50mW and IF current of 40mA.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The ZFM-2000+ mixer operates from 100 MHz to 2000 MHz.
The typical conversion loss at mid-band is 7.49 dB, and over the total range it is 9.5 dB.
The LO power level is +7 dBm.
The operating temperature range is -55°C to 100°C.
The ZFM-2000+ uses SMA connectors.
