| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3 pcs
|
3 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| (Select First, Then Apply Filters) Compatible Series | |
| Circuit | |
| Contact Rating @ Voltage | |
| Mounting Type | |
| Operating Force | |
| Requires | |
| Termination Style |

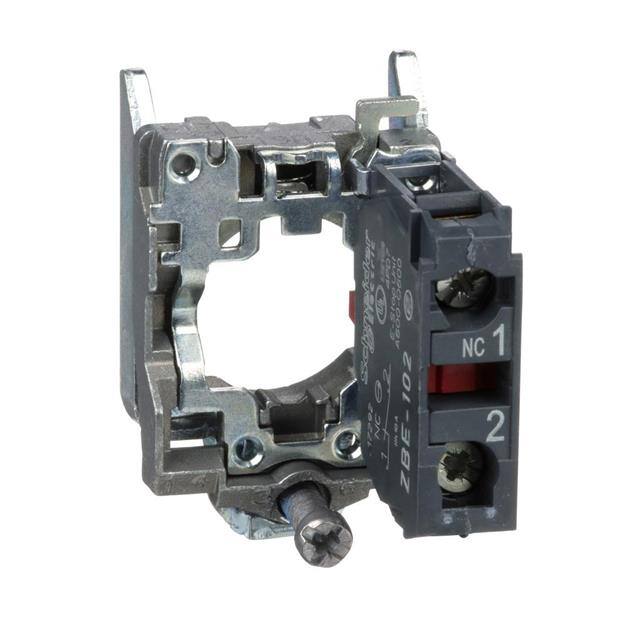

This Schneider Electric ZB4BZ102 is a contact block designed for use with the Harmony XB4 series of 22mm push buttons. It provides a single Normally Closed (NC) contact configuration, utilizing a slow-break operation. The terminals are screw clamp type, suitable for wire sizes up to 2 x 1.5 mm² with cable end or 1 x 0.22 mm² without cable end.
The device composition includes a body and a fixing collar made of Zamak. It is rated for standard contact usage and features positive opening as per EN/IEC 60947-5-1 appendix K. The electrical specifications include a rated insulation voltage of 600V and a rated operational current of 3A at 240V AC-15 and 6A at 120V AC-15.
With a mechanical durability of 5,000,000 cycles and electrical durability up to 10,000,000 cycles under specific conditions, this contact block is built for reliability. The contacts are made of a silver alloy (Ag/Ni). It is designed for panel mounting and is compatible with the Harmony XB4 series.
Environmental compliance includes RoHS3 compliance, MSL 1, and REACH unaffected status. The tightening torque for the terminals is specified between 0.8 and 1.2 N.m.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The ZB4BZ102 offers one Normally Closed (NC) contact.
The ZB4BZ102 features screw clamp terminals.
The rated operational current is 6A at 120V AC-15.
The mechanical durability is 5,000,000 cycles.
The rated insulation voltage is 600V.
The ZB4BZ102 is RoHS3 Compliant.
The Moisture Sensitivity Level (MSL) is 1 Unlimited.
