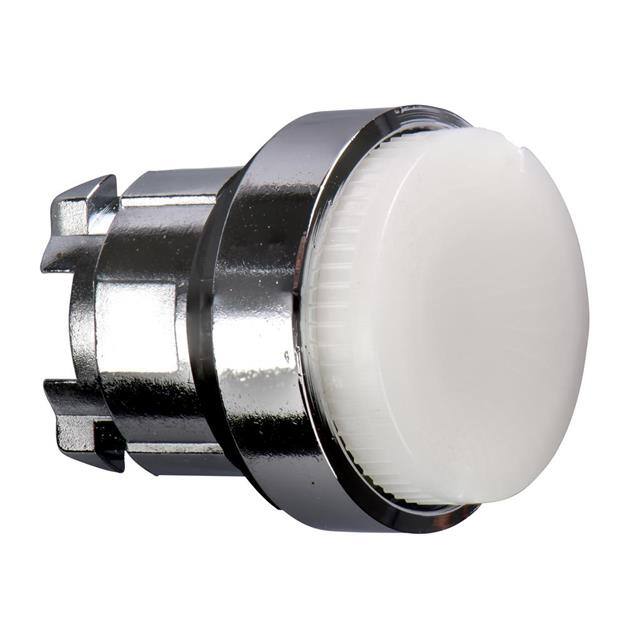

This Schneider Electric ZB4BW11 is a head for an illuminated push button, part of the Harmony XB4 range. It is designed for a 22mm round mounting diameter and features a white projecting operator with a plain lens.
The head is constructed with a chromium-plated metal bezel for durability. It operates as a spring return momentary switch. The product requires separate contact blocks and an illumination source.
Environmental specifications include an IP66, IP69, and IP69K degree of protection, NEMA 13 and NEMA 4X ratings, and an IK06 impact protection rating. It is designed for operation in ambient temperatures ranging from -40 to 55°C and storage temperatures from -40 to 70°C. Mechanical durability is rated for 10,000,000 cycles.
This component is compatible with BA 9s bulbs for illumination and is suitable for various industrial automation applications requiring robust and visible push button controls.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The mounting diameter is 22mm.
It features a spring return operator.
The mechanical durability is 10,000,000 cycles.
The ambient air temperature for operation is -40 to 55°C.
The IP degree of protection is IP66, IP69, and IP69K.
The IK degree of protection is IK06.
The RoHS status is RoHS3 Compliant.
