| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
121 pcs
|
121 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| (Select First, Then Apply Filters) Compatible Series | |
| Circuit | |
| Contact Type | |
| Lead Spacing | |
| Operating Force | |
| Operating Temperature | |
| Requires | |
| Storage Temperature | |
| Termination Style |

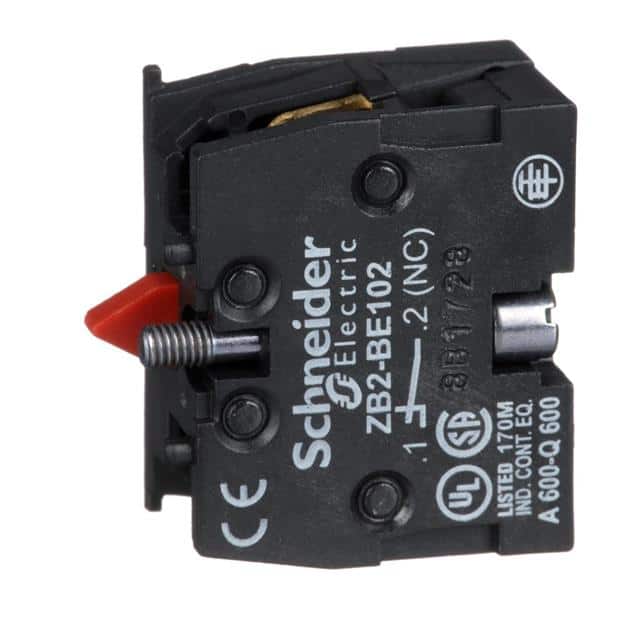

The Schneider Electric ZB2BE102 is a single contact block from the Harmony XAC range, designed for control circuits. It features one Normally Closed (NC) contact with a slow-break operation, suitable for single-speed applications.
This contact block is compatible with Schneider Electric's XACA, XB4, and XB5 series. It mounts to the front of a switch body and uses screw clamp terminals that can accommodate 1 x 2.5 mm² or 2 x 1.5 mm² wire sizes, with or without cable ends.
Key electrical specifications include a conventional enclosed thermal current of 10 A, a rated insulation voltage of 600 V, and a rated impulse withstand voltage of 6 kV. The mechanical durability is rated for 1,000,000 cycles. Environmental specifications include an operating temperature range of -25°C to 70°C and resistance to vibrations up to 15 gn and shocks up to 100 gn.
This component is classified under Class II for electrical shock protection and is designed for use with switch bodies requiring a front-mounting contact block.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The ZB2BE102 offers 1 Normally Closed (NC) contact.
The contact operation is slow-break.
The mechanical durability is 1,000,000 cycles.
The rated insulation voltage is 600 V.
The operating temperature range is -25 to 70 °C.
The contact block is front-mounted.
The RoHS status is RoHS3 Compliant.
