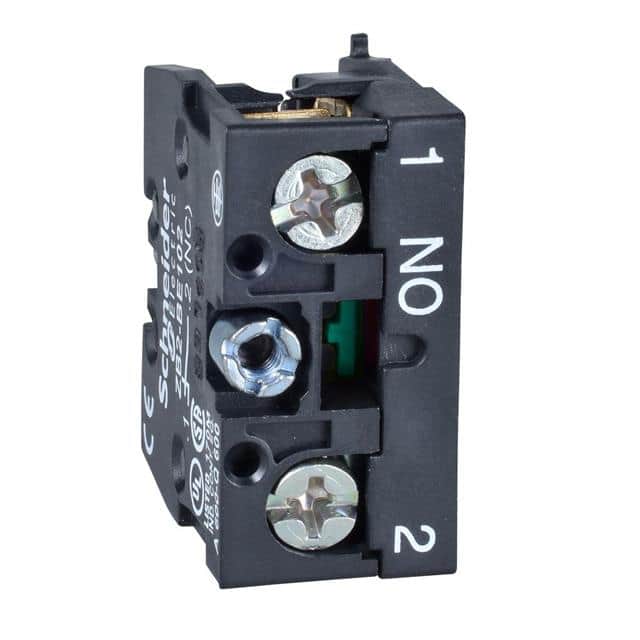

The Schneider Electric ZB2BE101 is a single-pole, normally open (NO) contact block designed for use with Harmony XAC series components. It features screw clamp terminals compatible with 1 x 2.5 mm² or 2 x 1.5 mm² wire sizes, with or without cable ends.
This contact block has a conventional enclosed thermal current of 10 A and a rated insulation voltage of 600 V. Its mechanical durability is rated for 1,000,000 cycles. The operating force required is between 13-15 N. It is designed for front mounting and offers a slow-break contact operation.
Environmental specifications include an operating temperature range of -25°C to 70°C and a storage temperature range of -40°C to 70°C. It also features vibration resistance of 15 gn and shock resistance of 100 gn. The protection class is Class II according to IEC 61140.
This component is compatible with various Schneider Electric series including XB4, XAPS2, XACA, and XB5, making it a versatile addition to control circuits.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The ZB2BE101 offers one Normally Open (NO) contact.
The ZB2BE101 features screw clamp terminals.
The rated insulation voltage is 600 V.
The operating temperature range is -25°C to 70°C.
The ZB2BE101 is RoHS3 Compliant.
The MSL is 1 Unlimited.
The REACH status is REACH Unaffected.
