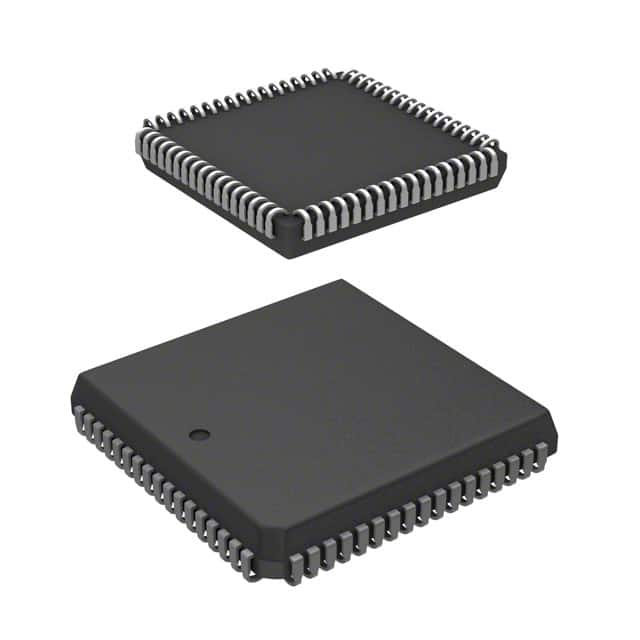

Z8S18010VSC The Zilog Z8S18010VSC is a 10MHz microprocessor featuring an 8-bit core and 68-PLCC packaging. It operates at 5.0V.
Mfr Part #:

Z8S18010VSC

Available from 1 distributors
Mfr Name: Zilog
Zilog
The Zilog Z8S18010VSC is a 10MHz microprocessor featuring an 8-bit core and 68-PLCC packaging. It operates at 5.0V.
✓ Total Stock: 4,000 pcs
$ Price Range: $11.19

Z8S18010VSC Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Components Technology Group, Inc. ✓
Non-Authorised Inventory information
4,000 pcs
On Request
4000 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

Z8S18010VSC Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Core Processor
Graphics Acceleration
Lead Style
Mounting Type
Number of Cores
Operating Temperature
RAM Controllers
Speed
Supplier Device Package
Voltage
View Similar Products (0)

Z8S18010VSC Description

Short technical summary and product information.

The Zilog Z8S18010VSC is an enhanced Z180 microprocessor designed for embedded systems. It operates at a clock speed of 10MHz and features a single 8-bit core. The device supports a 5.0V operating voltage and is housed in a 68-PLCC package, with other packaging styles like 64-pin DIP and 80-pin QFP also available.



Key features include expanded MMU addressing up to 1MB, two 16-bit counter-timers, and two enhanced UARTs capable of speeds up to 512 Kbps. It also incorporates on-chip interrupt controllers and wait-state generators. The operating temperature range is 0°C to 70°C, with an extended range available. The Z8S18010VSC offers backward compatibility with Zilog Z80 devices while providing improved performance and power-saving modes.



This microprocessor is suitable for applications requiring a robust and compatible processing unit. Its surface mountable design facilitates integration into various electronic circuits. The device is specified as RoHS non-compliant.

Z8S18010VSC Quick Information

Product Type: Microprocessor
Series: Z180
Canonical Name: Zilog Z8S180 Microprocessor
Subcategory: Embedded Microprocessors

Z8S18010VSC Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

Z8S18010VSC Estimated Pricing

Qty Low High
1+ $11.19 $11.19

Estimated market price range - modelled values for guidance only, not live distributor offers.

Z8S18010VSC Features

  • 10MHz clock speed for processing tasks.
  • Single 8-bit core processor.
  • 68-PLCC surface mount package.
  • Operates at 5.0V supply voltage.
  • Supports up to 512 Kbps UART speeds.

Z8S18010VSC Applications

  • Suitable for embedded system designs.
  • Ideal for Z80 compatible applications.
  • Used in systems requiring serial communication.
  • Applications needing counter/timer functions.

Z8S18010VSC FAQs

4 frequently asked questions generated from this part’s specifications.
What is the operating voltage for the Z8S18010VSC?

The operating voltage for the Z8S18010VSC is 5.0V.

What is the package type of the Z8S18010VSC?

The Z8S18010VSC is available in a 68-PLCC package and a 68-LCC (J-Lead) package.

What is the operating temperature range for this microprocessor?

The operating temperature range is 0°C to 70°C.

Is the Z8S18010VSC RoHS compliant?

The Z8S18010VSC is RoHS non-compliant.
