| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5,500 pcs
|
5500 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Core Processor | |
| Graphics Acceleration | |
| Mounting Type | |
| Number of Cores | |
| Operating Temperature | |
| RAM Controllers | |
| Speed | |
| Supplier Device Package | |
| Voltage |

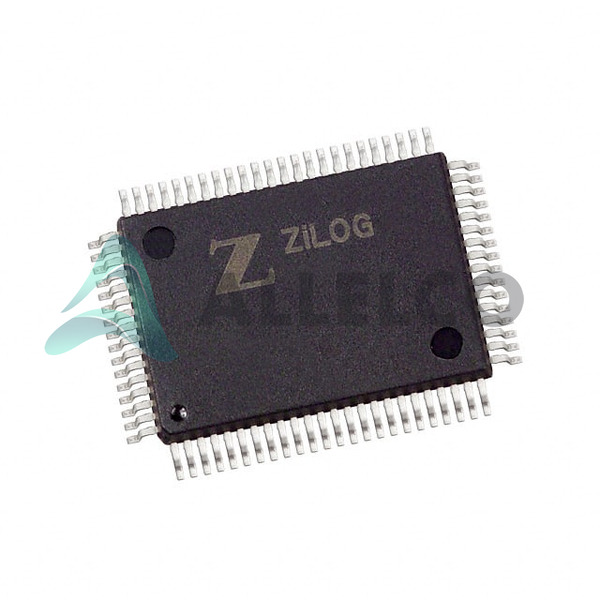

The Zilog Z8S18010VEG is a Z180 microprocessor designed for embedded applications. It operates at a clock speed of 10MHz and requires a 5V supply voltage. This 8-bit processor is code-compatible with the Zilog Z80 CPU, offering extended instructions and enhanced features.
Key technical specifications include on-chip interrupt controllers, three wait-state generators, and an on-chip oscillator. It supports up to 1MB of memory addressing and features two enhanced UARTs capable of speeds up to 512 Kbps. The processor also includes two chain-linked DMA channels and a clocked serial I/O port.
The Z8S18010VEG is available in a 68-PLCC package, suitable for surface mount applications. It operates within a temperature range of 0°C to 70°C, with an extended range available for specific models. This microprocessor is designed for reliable performance in various embedded systems.
| Qty | Low | High |
|---|---|---|
| 1+ | $11.19 | $11.19 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The Z8S18010VEG operates at a nominal clock speed of 10MHz.
The operating voltage is 5.0V.
The operating temperature range is 0°C to 70°C.
The Z8S18010VEG is available in a 68-PLCC package.
Yes, the RoHS status is RoHS3 Compliant.
The Moisture Sensitivity Level is 1 Unlimited.
