Z8523020PSC
Zilog
The Zilog Z8523020PSC is a specialized serial communication controller designed for interface applications. It features dual full-duplex channels and supports speeds up to 5 Mbps.
| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
9,565 pcs
|
9565 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Channels | |
| Interface | |
| Lead Spacing | |
| Mounting Type | |
| Supplier Device Package | |
| Voltage |
The Zilog Z8523016PEC is a specialized integrated circuit designed for interface and communication applications. It belongs to the Zilog SCC (Serial Communication Controller) family, known for setting industry standards.
This component features dual full-duplex channels and supports processing speeds up to 5 Mbps. It is capable of handling multiple protocol formats including async, monosync, bisync, SDLC/HDLC, and SDLC/HDLC loop. Encoding modes supported are NRZI, FM0, FM1, and Manchester, with error detection capabilities for CRC-16 or CRC-CCITT.

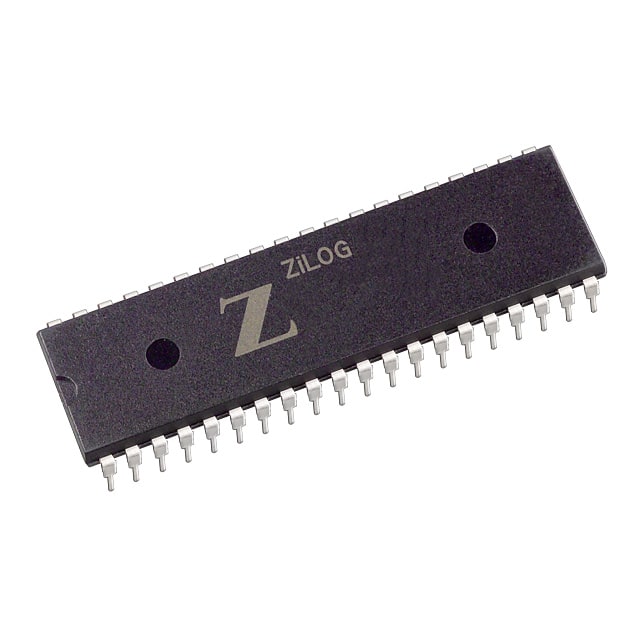

The Z8523016PEC is housed in a 40-DIP package and is designed for through-hole mounting. It operates with a supply voltage ranging from 4.5V to 5.5V. The device includes a 4-byte transmit FIFO and an 8-byte receive FIFO, simplifying data handling and reducing CPU overhead.
This specialized interface IC is suitable for various embedded systems requiring robust serial communication capabilities, such as industrial controllers, data loggers, and peripheral communication devices.
| Qty | Low | High |
|---|---|---|
| 1+ | $6.39 | $6.39 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The Zilog Z8523016PEC operates within a voltage range of 4.5V to 5.5V.
The Z8523016PEC is available in a 40-DIP (0.620", 15.75mm) package.
The Z8523016PEC is RoHS3 Compliant.
The Moisture Sensitivity Level (MSL) for the Z8523016PEC is 1 Unlimited.
The Z8523016PEC supports processing speeds up to 5 Mbps.
The Z8523016PEC features dual full-duplex channels.
The Z8523016PEC supports async, monosync, bisync, SDLC/HDLC, and SDLC/HDLC loop formats.
