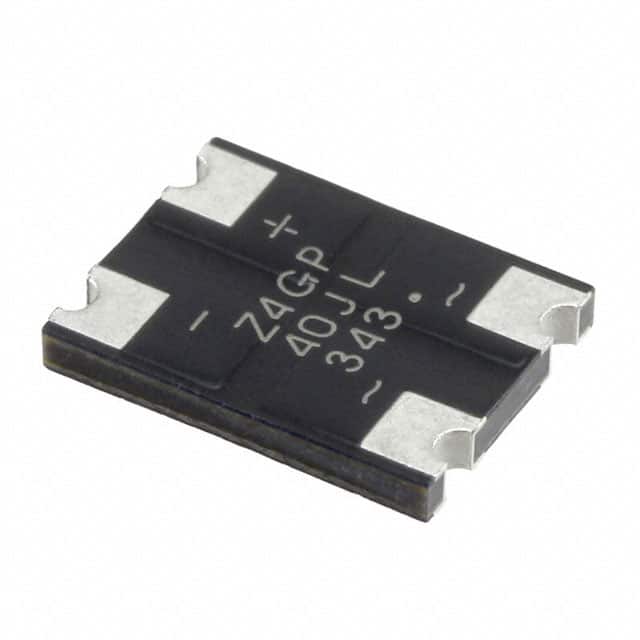

The Z4DGP406L-HF is a single-phase bridge rectifier from Comchip Technology, designed for general-purpose AC-to-DC rectification. It features a 600V repetitive peak reverse voltage (VRRM) and an average forward current rating of 4.0A. The device offers a low forward voltage drop of 0.86–0.90V at 2A and 0.90–0.95V at 4A, reducing power dissipation. It can handle a peak forward surge current of 150A for 8.3ms, providing robustness during startup and transient conditions.
The bridge rectifier is housed in a Z4-D surface mount package with FRP substrate and epoxy underfill, measuring 10.6×8.2mm. The package has pure tin plated terminals and is solderable per MIL-STD-750. It is RoHS compliant, halogen-free, and lead-free, making it suitable for environmentally conscious designs. The operating junction temperature range is -55°C to 175°C.
Applications include power supplies, battery chargers, and other equipment requiring single-phase rectification. The low profile and surface mount design enable high-density PCB layouts.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.13 | $2.13 |
| 10+ | $1.36 | $1.36 |
| 100+ | $0.91 | $0.91 |
| 500+ | $0.73 | $0.73 |
| 1,000+ | $0.66 | $0.66 |
| 3,000+ | $0.59 | $0.59 |
| 6,000+ | $0.55 | $0.55 |
| 9,000+ | $0.51 | $0.51 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The repetitive peak reverse voltage (VRRM) is 600V.
The average forward current I(AV) is 4.0A according to the datasheet.
At a forward current of 2.0A, the forward voltage is typically 0.86V to 0.90V. At 4.0A, it is 0.90V to 0.95V.
It comes in a Z4-D surface mount package.
It can withstand a peak forward surge current of 150A for a single 8.3ms half sine-wave.
The operating junction temperature range is -55°C to 175°C.
Yes, it is RoHS3 compliant and halogen-free according to the datasheet.
