| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1 pcs
|
1 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| For Use With | |
| Tool Type |

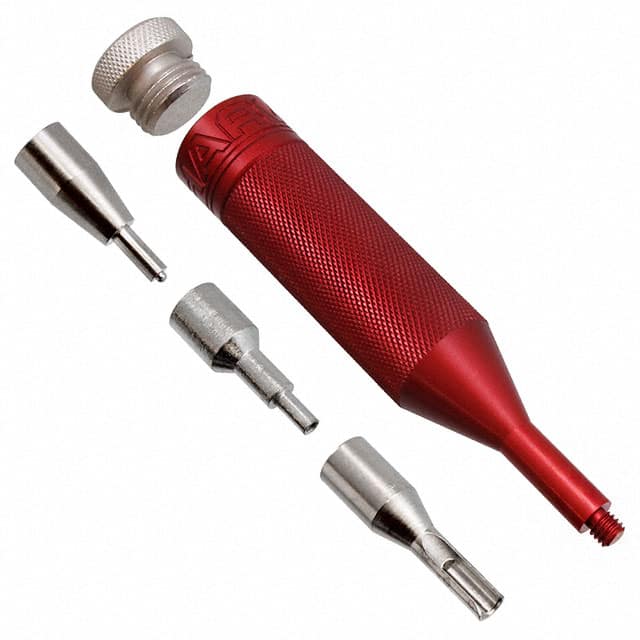

The Harwin Inc. Z300-902 is a specialized tool for use with the M300 series of connectors. This insertion and extraction tool is engineered to assist in the assembly and disassembly of rectangular contacts, particularly those for 18-22 AWG wires.
Designed for efficiency and ease of use, the Z300-902 ensures proper seating and removal of contacts within the M300 connector housings. This is crucial for maintaining the integrity and reliability of high-reliability power connections. The tool is compatible with both male and female M300 connectors, supporting cable-to-board and cable-to-cable configurations.
Refer to instruction sheet IS-40 for detailed usage guidelines. Spare tips, such as the Z300-920 insertion tip and Z300-922 female receptacle tool, are also available separately.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The Z300-902 is an insertion and extraction tool for assembling and removing rectangular contacts for the M300 series connectors.
The Z300-902 tool is designed for use with rectangular contacts for 18-22 AWG wires.
The Z300-902 is an Insertion/Extraction Tool.
