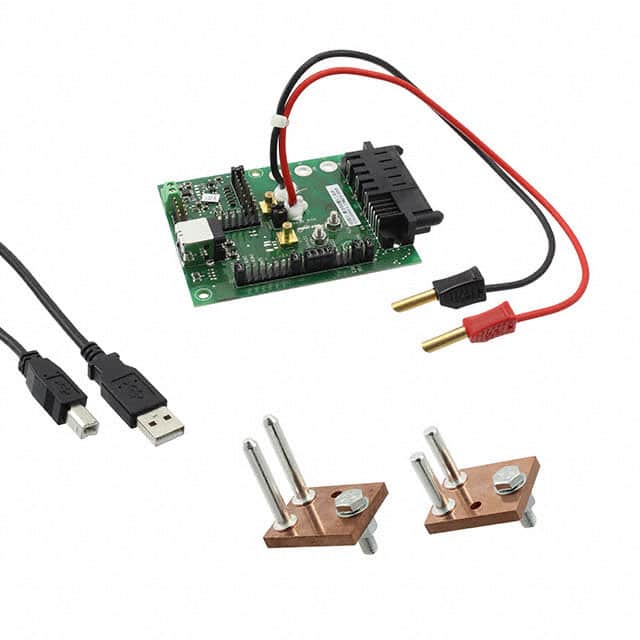

The Bel Power Solutions YTM.U0M00.0 is an evaluation board accessory for the PFE3000-12-069RA power supply. This board is designed to facilitate the testing and development of systems utilizing the PFE3000-12-069RA, which is a 3000 Watt AC/DC power supply.
The PFE3000-12-069RA power supply provides a 12 VDC output and operates with a wide AC input voltage range of 90-300 VAC. It also supports a DC input voltage range of 192-400 VDC. The power supply features power factor correction (PFC) and a high-density design.
This evaluation board allows engineers to explore the capabilities of the PFE3000-12-069RA in applications such as high-performance servers, routers, and network switches. The board is packaged in a box and is intended for use with the specified power supply.
Key specifications of the associated power supply include a 3000W power rating, 12VDC output, and 30.5 W/in3 density. The power supply also includes overtemperature, output overvoltage, and overcurrent protection, along with an I2C communication interface.
The PFE3000-12-069RA power supply has a nominal output voltage of 12 VDC.
The PFE3000-12-069RA power supply is rated for 3000 Watts.
The PFE3000-12-069RA power supply accepts an AC input voltage range of 90-300 VAC.
The PFE3000-12-069RA power supply has dimensions of 555 x 69 x 42 mm (21.85 x 2.72 x 1.65 in).
The PFE3000-12-069RA power supply includes overtemperature, output overvoltage, and overcurrent protection.
The PFE3000-12-069RA power supply is safety-approved to IEC/EN 62368-1 and UL/CSA 62368-1.
