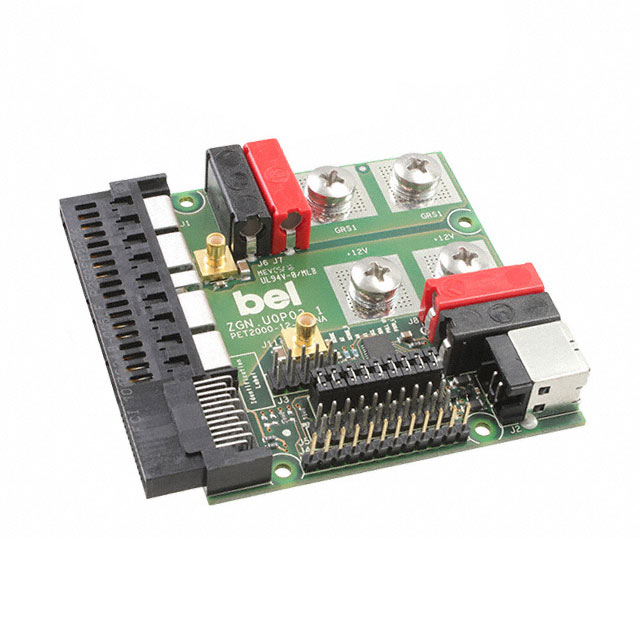

The YTM.00046.0 from Bel Power Solutions is an evaluation board for the PET2000-12-074NA AC to DC power supply. This board facilitates testing and integration of a power supply designed for high-availability applications such as networking switches, servers, and telecommunications equipment.
The PET2000-12-074NA power supply, which this evaluation board supports, features a 2000 Watt continuous output power capability with a main output of +12 VDC. It boasts 80 PLUS Platinum efficiency and utilizes full digital control architecture for enhanced performance and functionality. The power supply supports auto-selected input voltage ranges of 90-140 VAC and 180-264 VAC, incorporates AC input with power factor correction, and offers an always-on 12V standby output. It is also hot-plug capable and supports parallel operation with active current sharing.
Designed for high density, the PET2000-12-074NA has a compact form factor measuring 265 x 73.5 x 40 mm. It features resonance-soft-switching technology for increased reliability and efficiency. Cooling is managed by a fan, with speed adjusted automatically based on power demand and temperature, and can be controlled via an I2C bus. The evaluation board allows for control, programming, and monitoring through a Power Management Bus communication protocol, with status indicated by a front-panel LED with fault signaling.
The main output voltage is 12 VDC.
The continuous output power capability is 2000 W.
The input voltage ranges are auto-selected between 90 - 140 VAC and 180 - 264 VAC.
The power supply has an 80 PLUS Platinum efficiency rating.
Yes, it features AC input with power factor correction.
It provides an always-on 12 VDC standby output.
Yes, it is hot-plug capable.
