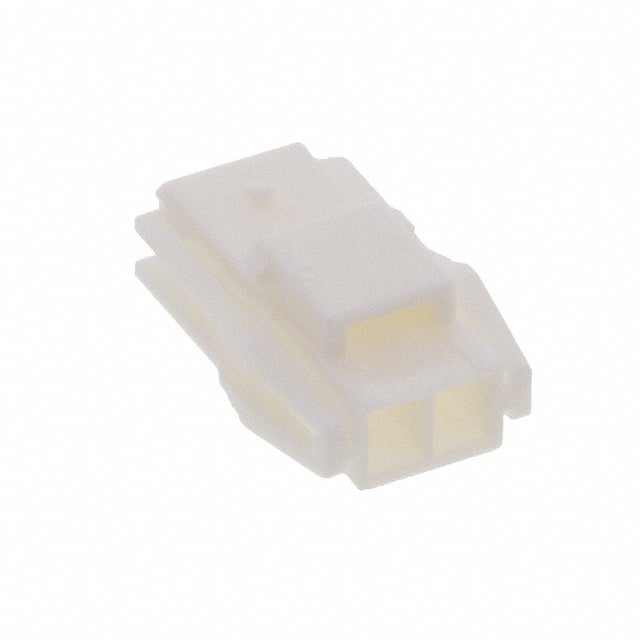

YLR-02V JST YLR-02V is a 2-position, single-row receptacle housing with 4.50mm pitch, designed for crimp termination and free-hanging (in-line) mounting. Rated for 10 A AC/DC and 300 V AC/DC.
Mfr Part #:

YLR-02V

Available from 2 distributors
Mfr Name: Jst Manufacturing
Jst Manufacturing
JST YLR-02V is a 2-position, single-row receptacle housing with 4.50mm pitch, designed for crimp termination and free-hanging (in-line) mounting. Rated for 10 A AC/DC and 300 V AC/DC.
✓ Total Stock: 158 pcs

YLR-02V Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Braun Electronic Components ✓
Non-Authorised Inventory information
79 pcs
On Request
79 pcs On Request 1 On Request On Request On Request On Request On Request
Emiteli ✓
Non-Authorised Inventory information
79 pcs
On Request
79 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

YLR-02V Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Connector Type
Contact Resistance
Contact Termination
Contact Type
Current Rating
Fastening Type
Insulation Resistance
Mounting Type
Number of Positions
Number of Rows
Operating Temperature
Pitch
SVHC Present
Voltage Rating
Withstanding Voltage
View Similar Products (0)

YLR-02V Description

Short technical summary and product information.

The JST YLR-02V is a 2-position receptacle housing from the YL series of disconnectable crimp-style wire-to-wire connectors. It features a 4.50mm pitch and a single-row configuration, making it suitable for compact wiring applications. The housing is designed for free-hanging (in-line) mounting and uses a latch holder fastening type for secure mating.



Electrical ratings include 10 A AC/DC current (derated to 7 A when secondary retainers are mounted) and 300 V AC/DC voltage. The operating temperature range is -25°C to +90°C, including temperature rise. Contact resistance is 7 mΩ maximum initial, and insulation resistance is 1,000 MΩ minimum. The housing withstands 1,500 VAC for one minute.



The YLR-02V accepts wire sizes from AWG 26 to 16 and accommodates panel thicknesses from 0.7 to 2.0 mm. The housing is white in color and is recognized under standards E60389, certified LR20812, and R9351052. It is RoHS2 compliant.

YLR-02V Quick Information

Product Type: Rectangular Connector Housing
Series: YLR
Canonical Name: JST YLR Series Receptacle Housing, 2 Position, 4.50mm Pitch, Crimp Termination
Subcategory: Wire-to-Wire Connector

YLR-02V Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

YLR-02V Features

  • 2-position single-row receptacle housing.
  • 4.50mm pitch for compact wiring.
  • Rated 10A AC/DC (7A with retainers).
  • Crimp termination for wire sizes AWG 26-16.
  • Latch holder fastening for secure mating.

YLR-02V Applications

  • Wire-to-wire connections in automotive harnesses.
  • Power distribution in industrial control panels.
  • Internal wiring of home appliances.
  • LED lighting and signage interconnect systems.

YLR-02V FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the YLR-02V have?

The YLR-02V has 2 positions in a single row.

What is the pitch of the YLR-02V?

The pitch is 4.50 mm (0.177 inches).

What is the current rating of the YLR-02V?

The current rating is 10 A AC/DC, derated to 7 A when secondary retainers are mounted.

What is the voltage rating of the YLR-02V?

The voltage rating is 300 V AC/DC.

What mounting type does the YLR-02V use?

The YLR-02V is designed for free hanging (in-line) mounting.

What wire sizes are compatible with the YLR-02V?

The housing accepts wire sizes from AWG 26 to 16.

What is the operating temperature range of the YLR-02V?

The operating temperature range is -25°C to +90°C, including temperature rise.
