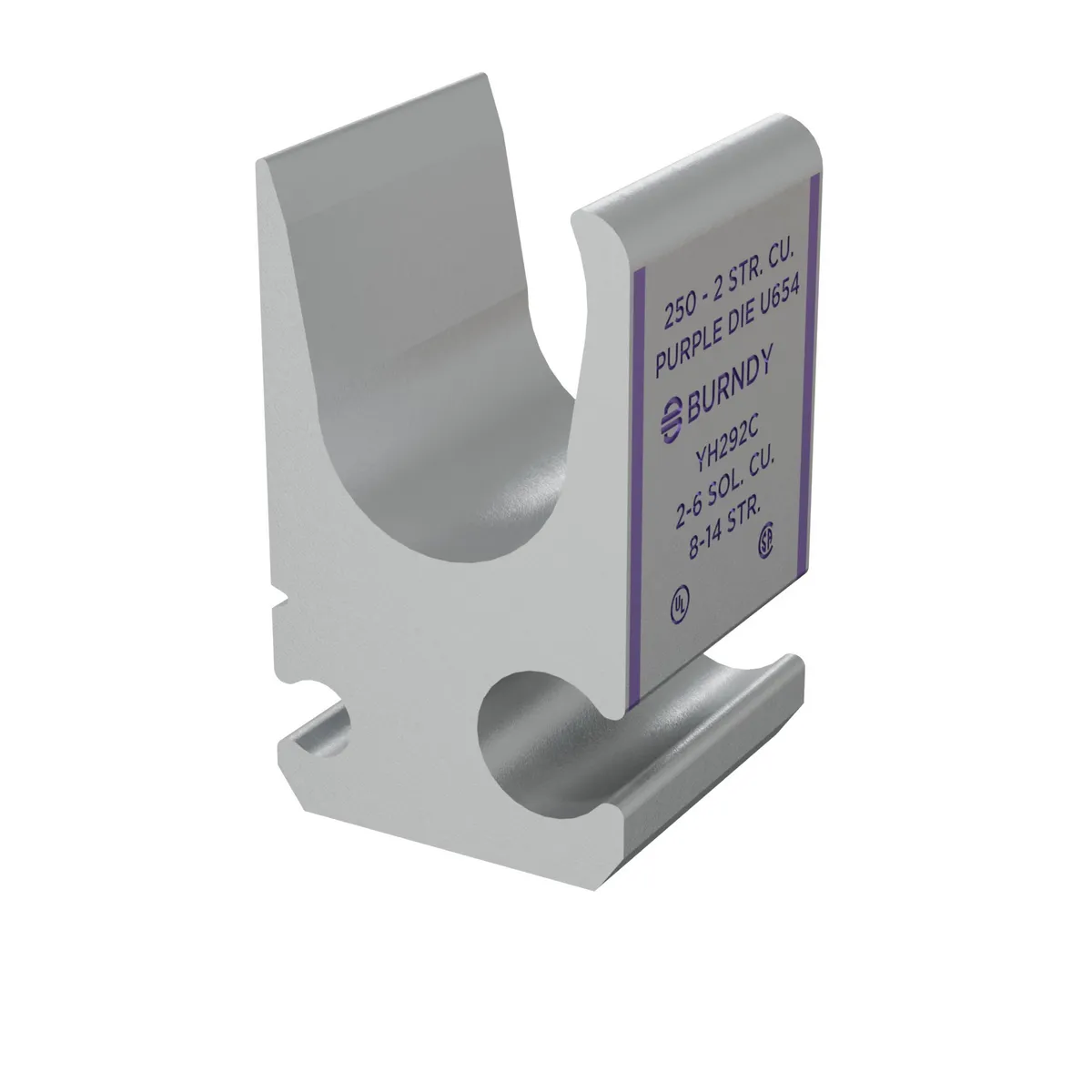

YH292CWC The Burndy YH292CWC is a tin-plated copper compression H-tap connector designed for wire tapping applications. It supports a voltage rating of 35kV.
Mfr Part #:

YH292CWC

Available from 1 distributors
Mfr Name: Burndy
Burndy
The Burndy YH292CWC is a tin-plated copper compression H-tap connector designed for wire tapping applications. It supports a voltage rating of 35kV.
✓ Total Stock: 10 pcs
$ Price Range: $1.16

YH292CWC Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
10 pcs
On Request
10 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

YH292CWC Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Conductor Material
Conductor Type
Operating Temperature
Voltage Rating
Width
View Similar Products (0)

YH292CWC Description

Short technical summary and product information.

The Burndy YH292CWC is a copper compression H-tap connector with a tin-plated finish, suitable for wire tap applications. It is designed to accommodate a run conductor size ranging from 250 kcmil to 2 AWG and a tap conductor size from 2 AWG to 14 AWG.



This connector operates at a maximum voltage of 35kV. It features a strip length of 1-1/16 inches and a width of 1.52 inches, with an overall length of 0.90 inches. The connector is rated for a temperature of 194°F.



Key specifications include a die index of 654 and a purple color code. It adheres to industry standards such as UL 486A-486B and is UL Listed and CSA Approved. The connector is part of the CRIMPIT™ product family and sub-brand.



Packaging details indicate a carton quantity of 25 and a pallet quantity of 2250.

YH292CWC Quick Information

Product Type: Compression H-Tap Connector
Series: CRIMPIT
Canonical Name: Burndy YH292CWC Copper Compression H Tap Connector
Subcategory: Compression Connectors

YH292CWC Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

YH292CWC Estimated Pricing

Qty Low High
1+ $1.16 $1.16

Estimated market price range - modelled values for guidance only, not live distributor offers.

YH292CWC Features

  • Tin-plated copper compression H-tap connector.
  • Accommodates 250 kcmil-2 AWG run conductors.
  • Supports 2 AWG-14 AWG tap conductors.
  • Rated for 35kV maximum voltage.
  • UL Listed and CSA Approved.

YH292CWC Applications

  • Used in power distribution connections.
  • Suitable for service entrance applications.
  • Ideal for tap connections in electrical panels.
  • Common in industrial and commercial wiring.

YH292CWC FAQs

7 frequently asked questions generated from this part’s specifications.
What is the voltage rating of this connector?

35 kV.

What operating temperature is the connector rated for?

194°F.

What conductor sizes does the run and tap accept?

Run: 250 kcmil to 2 AWG; Tap: 2 AWG to 14 AWG.

What color is the connector?

Purple.

What is the plating material?

Tin electro-plated.

How is this product packaged?

Carton of 25; pallet of 2250.

Is the connector UL listed or CSA approved?

Yes, UL 486A-486B listed and CSA approved.
