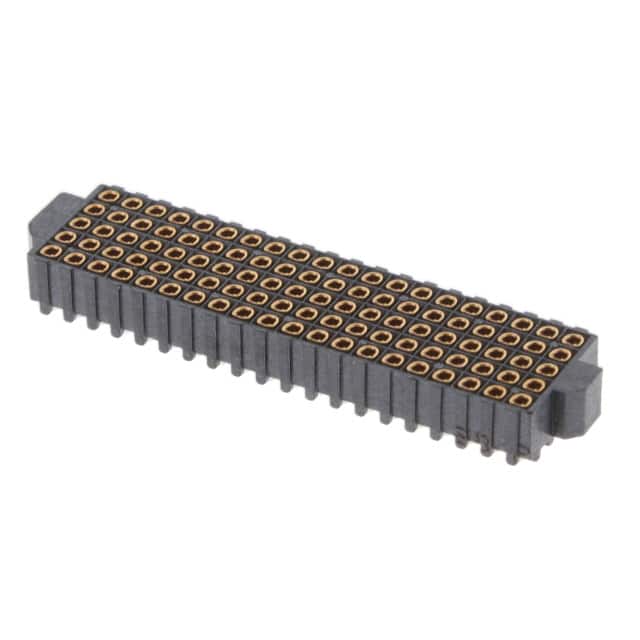

YFS-20-03-H-05-SB-K-TR Samtec YFS-20-03-H-05-SB-K-TR is a 100 position, 5 row, 1.27mm pitch array socket with gold plated phosphor bronze contacts. It is surface mount and packaged in tape and reel.
Mfr Part #:

YFS-20-03-H-05-SB-K-TR

Available from 1 distributors
Mfr Name: Samtec Inc.
Samtec Inc.
Samtec YFS-20-03-H-05-SB-K-TR is a 100 position, 5 row, 1.27mm pitch array socket with gold plated phosphor bronze contacts. It is surface mount and packaged in tape and reel.
✓ Total Stock: 5 pcs
$ Price Range: $15.70 - $24.27

YFS-20-03-H-05-SB-K-TR Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
MW.FEP S.p.A. ✓
Non-Authorised Inventory information
5 pcs
On Request
5 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

YFS-20-03-H-05-SB-K-TR Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Finish Thickness
Contact Material
Features
Halogen Free
Height Above Board
Insulator Material
Lead Spacing
Lead Style
Mated Stacking Heights
Mounting Type
Number of Positions
Number of Rows
Operating Temperature Range
Pitch
Prop 65
Tape & Reel
Termination Style
Working Voltage
View Similar Products (0)

YFS-20-03-H-05-SB-K-TR Description

Short technical summary and product information.

The Samtec YFS-20-03-H-05-SB-K-TR is a low profile open-pin-field array socket from the YFS series. It features 100 positions arranged in 5 rows with a 1.27mm (0.050") pitch, designed for surface mount soldering. The connector uses high-reliability Tiger Eye contacts made of phosphor bronze with a 0.76µm (30µin) gold plating over 1.27µm nickel.



The insulator is made of black liquid crystal polymer. The socket has a height above board of 3.40mm (0.134") and supports mated stacking heights of 5mm, 7mm, 9mm, 12mm, 19mm, and 25mm. It is rated for 200 mated cycles when mated with the YFT series. The operating temperature range is -55°C to +125°C.



This part includes a polyimide film pick and place pad for automated assembly. It is supplied in tape and reel packaging with a standard quantity of 650 pieces per reel. The working voltage is 275 VAC when mated with YFT.

YFS-20-03-H-05-SB-K-TR Quick Information

Product Type: Array Socket
Series: YFS
Canonical Name: Samtec YFS Series .050" Low Profile Open-Pin-Field Array Socket, 100 Position, 5 Row, Surface Mount
Subcategory: Open-Pin-Field Array

YFS-20-03-H-05-SB-K-TR Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): Level 1
REACH Status: EU REACH Lead
Lead Free: Yes

YFS-20-03-H-05-SB-K-TR Estimated Pricing

Qty Low High
1+ $24.27 $24.27
10+ $20.63 $20.63
25+ $19.34 $19.34
50+ $18.53 $18.53
250+ $18.52 $18.52
650+ $15.70 $15.70

Estimated market price range - modelled values for guidance only, not live distributor offers.

YFS-20-03-H-05-SB-K-TR Features

  • 100 positions in 5 rows with 1.27mm pitch.
  • Gold plated phosphor bronze Tiger Eye contacts.
  • Surface mount with 3.40mm height above board.
  • Supports mated stacking heights from 5mm to 25mm.
  • Includes polyimide film pick and place pad.

YFS-20-03-H-05-SB-K-TR Applications

  • Used in mezzanine board-to-board stacking applications.
  • Suitable for high-density interconnect designs.
  • Ideal for applications requiring multiple stacking heights.
  • Designed for automated surface mount assembly processes.

YFS-20-03-H-05-SB-K-TR FAQs

7 frequently asked questions generated from this part’s specifications.
What is the pitch of the YFS-20-03-H-05-SB-K-TR?

The pitch is 1.27mm (0.050").

How many positions does this connector have?

It has 100 positions arranged in 5 rows.

What is the mounting type for this part?

It is surface mount.

What is the operating temperature range?

The operating temperature range is -55°C to +125°C.

What is the contact finish?

The contact finish is 0.76µm (30µin) gold over nickel.

Is this part RoHS compliant?

No, the datasheet states it is RoHS non-compliant.

What packaging is available?

It is available in tape and reel packaging with 650 parts per reel.
