YFS-20-03-H-05-SB Samtec YFS-20-03-H-05-SB is a .050" (1.27mm) pitch low profile open-pin-field array socket with 100 positions in 5 rows, surface mount, gold contact finish.
Mfr Part #:

YFS-20-03-H-05-SB

Available from 1 distributors
Mfr Name: Samtec Inc.
Samtec Inc.
Samtec YFS-20-03-H-05-SB is a .050" (1.27mm) pitch low profile open-pin-field array socket with 100 positions in 5 rows, surface mount, gold contact finish.
✓ Total Stock: 12 pcs
$ Price Range: $33.37 - $37.24

YFS-20-03-H-05-SB Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Speed Components Ltd ✓
Non-Authorised Inventory information
12 pcs
On Request
12 pcs On Request 1 On Request On Request 16+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

YFS-20-03-H-05-SB Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Finish Thickness
Contact Material
Data Rate
Halogen Free
Height Above Board
Insulator Material
Lead Spacing
Lead Style
Mated Stacking Heights
Mating Cycles
Mounting Type
Number of Positions
Number of Rows
Operating Temperature Range
Pitch
Polarization
Tape & Reel
Termination Style
View Similar Products (0)

YFS-20-03-H-05-SB Description

Short technical summary and product information.

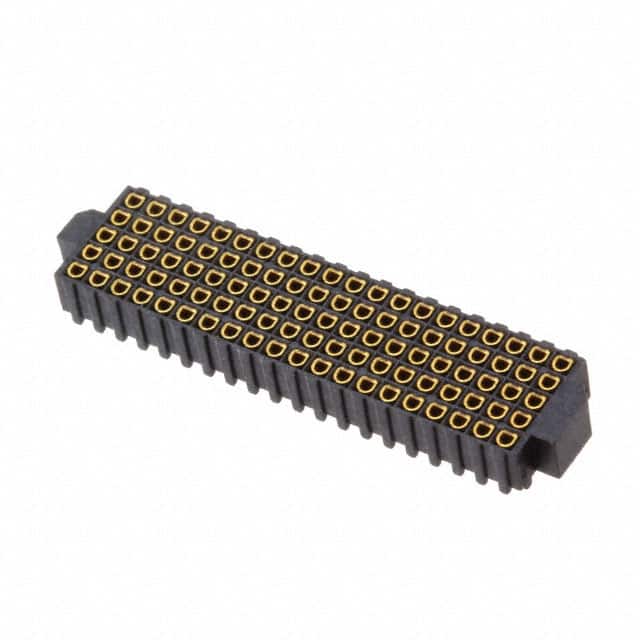

The Samtec YFS-20-03-H-05-SB is a .050" (1.27mm) pitch low profile open-pin-field array socket from the YFS series. It features 100 positions arranged in 5 rows with a standard insertion force lead style. The connector uses high-reliability Tiger Eye contacts with phosphor bronze contact material and 30µin gold plating on the contact area.



This socket is designed for surface mount soldering and mates with Samtec YFT and YFW series connectors. It supports mated stacking heights of 5mm, 7mm, 9mm, 12mm, 19mm, and 25mm. The insulator is made of black liquid crystal polymer and the connector includes polarized notches for proper alignment.



Electrically, the YFS-20-03-H-05-SB is rated for 275 VAC when mated with YFT and supports data rates up to 28 Gbps typical. It operates over a temperature range of -55°C to +125°C and is rated for 200 mating cycles with YFT. The component is packaged in trays with a standard quantity of 70 pieces.

YFS-20-03-H-05-SB Quick Information

Product Type: Array Socket
Series: YFS
Canonical Name: Samtec YFS Series .050" Low Profile Open-Pin-Field Array Socket, 100 Positions, 5 Rows, Surface Mount, Gold
Subcategory: Open-Pin-Field Array

YFS-20-03-H-05-SB Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): Level 1
REACH Status: EU REACH Lead
Lead Free: No

YFS-20-03-H-05-SB Estimated Pricing

Qty Low High
1+ $37.24 $37.24
50+ $37.23 $37.23
70+ $34.70 $34.70
280+ $33.37 $33.37

Estimated market price range - modelled values for guidance only, not live distributor offers.

YFS-20-03-H-05-SB Features

  • 100 positions in 5 rows array socket.
  • 1.27mm (0.050") pitch for high density.
  • Surface mount with gold plated contacts.
  • Supports data rates up to 28 Gbps.
  • Rated for 200 mating cycles with YFT.

YFS-20-03-H-05-SB Applications

  • Board-to-board mezzanine stacking applications.
  • High-speed data transmission up to 28 Gbps.
  • Open-pin-field array for flexible routing.

YFS-20-03-H-05-SB FAQs

7 frequently asked questions generated from this part’s specifications.
What is the pitch of the YFS-20-03-H-05-SB?

The pitch is 1.27mm (0.050").

How many positions does the YFS-20-03-H-05-SB have?

It has 100 positions arranged in 5 rows.

What is the voltage rating of this connector?

The working voltage is 275 VAC when mated with YFT.

What is the mounting type for the YFS-20-03-H-05-SB?

It is surface mount (SMD).

What is the operating temperature range?

The operating temperature range is -55°C to +125°C.

What is the contact finish on this socket?

The contact finish is 30µin (0.76µm) gold on the contact area over 50µin nickel.

What packaging is the YFS-20-03-H-05-SB available in?

It is packaged in trays with a standard quantity of 70 pieces.
