Mfr Part #:

YEMA003AA

Name: YEMA003AA
Brand: Quectel Wireless Solutions
SKU: YEMA003AA

Description:

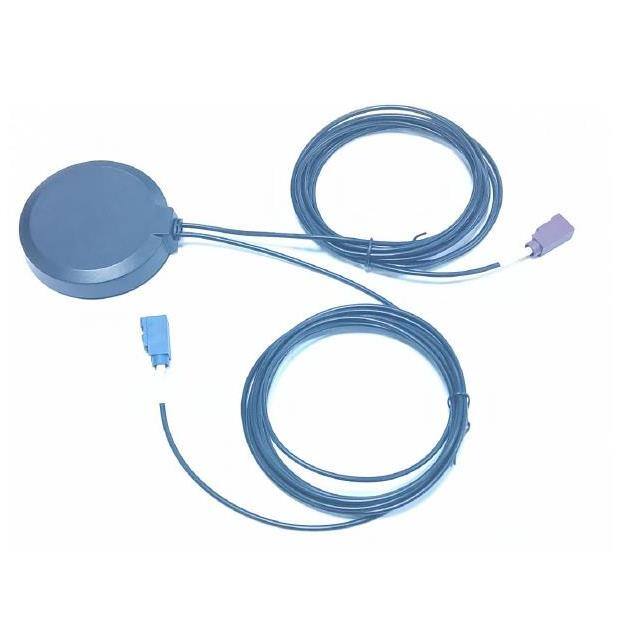

2IN1 COMBO ADH LTE&GNSS FAKRA

Stock on Request

YEMA003AA Description

Short technical summary and product information.

2IN1 COMBO ADH LTE&GNSS FAKRA

Mfr Standard Lead Time: 12 weeks (varies by distributor)

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Category	RF Antennas
Manufacturer Name	Quectel Wireless Solutions
Antenna Type	Dome
Applications	GNSS, LTE, Wi-Fi
Features	Cable - 3m, LNA
Frequency (Center	829MHz, 830MHz, 1.228GHz, 1.505GHz, 1.561GHz, 1.575GHz, 1.94GHz, 2.2GHz, 2.43GHz, 3.65GHz, 4.5GHz, 5.5GHz
Frequency Group	Wide Band
Frequency Range	698MHz ~ 960MHz, 700MHz ~ 960MHz, 1.176GHz ~ 1.28GHz, 1.4GHz ~ 1.58GHz, 1.556GHz ~ 1.566GHz, 1.57GHz ~ 1.61GHz, 1.71GHz ~ 1.71GHz, 1.71GHz ~ 2.17GHz, 2.17GHz ~ 2.69GHz, 3.3GHz ~ 4GHz, 4GHz ~ 5GHz, 5GHz ~ 6GHz
Gain	4dBi, 0.42dBi, 4dBi, -2.08dBi, 5dBi, 5dBi
Height (Max)	0.689" (17.50mm)
Ingress Protection	IP66
Mounting Type	Adhesive
Number of Bands	12
RF Family	Cellular, Navigation, WiFi
Termination	Fakra
VSWR	3
