| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,900 pcs
|
3900 pcs | On Request | 1 | On Request | On Request | 17+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Circuit Type | |
| Halogen Free | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Pins | |
| Number of Resistors | |
| Operating Temperature | |
| Power Per Element | |
| Resistance (Ohms) | |
| Storage Temperature | |
| Tape & Reel | |
| Temperature Coefficient | |
| Tolerance | |
| Width |

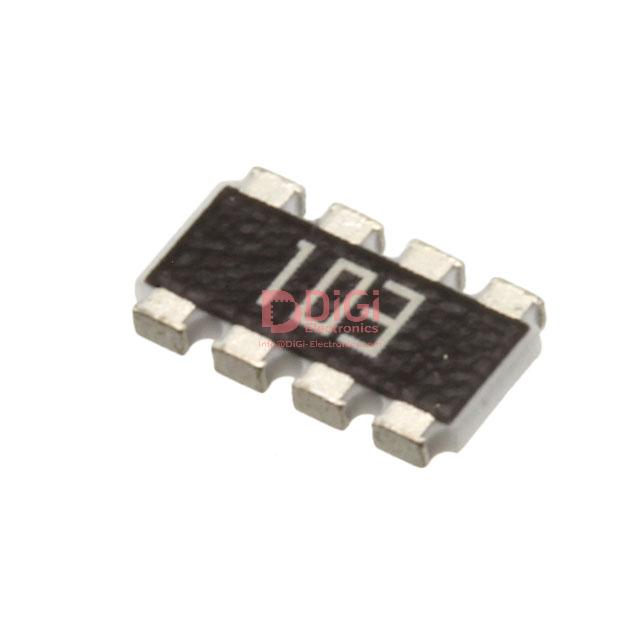

The Yageo YC324-JK-0751RL is a surface-mount resistor network belonging to the YC324 series. It comprises four isolated resistors, each rated for 51 Ohms with a tolerance of ±5%. The power dissipation per element is 125mW, and the operating temperature range is -55°C to 155°C.
This component is housed in a 2012 package with convex, long side terminals, measuring 5.08mm in length and 3.20mm in width. Its surface mount design and compact dimensions make it suitable for various electronic applications.
Key electrical characteristics include a temperature coefficient of ±200ppm/°C. The product is compliant with RoHS3 standards and has an MSL of 1. Applications include automotive AEC-Q200, DDRAM, and SDRAM.
This resistor network is designed for efficient pick and place applications, contributing to low assembly costs. Its robust construction ensures high component and equipment reliability, while also saving PCB space.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.05 | $0.05 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The resistance value is 51 Ohms.
The tolerance is ±5%.
There are 4 resistors in this network.
The power per element is 125mW.
The operating temperature range is -55°C to 155°C.
It uses a 2012 package with convex, long side terminals.
Yes, it is AEC-Q200 qualified.
