| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,312 pcs
|
2312 pcs | On Request | 1 | On Request | On Request | 22+ | On Request | On Request | |
|
2,249 pcs
|
2249 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Circuit Type | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Pins | |
| Number of Resistors | |
| Operating Temperature | |
| Power Per Element | |
| Resistance | |
| Resistance (Ohms) | |
| Storage Temperature | |
| Tape & Reel | |
| Temperature Coefficient | |
| Termination Style | |
| Tolerance | |
| Width |

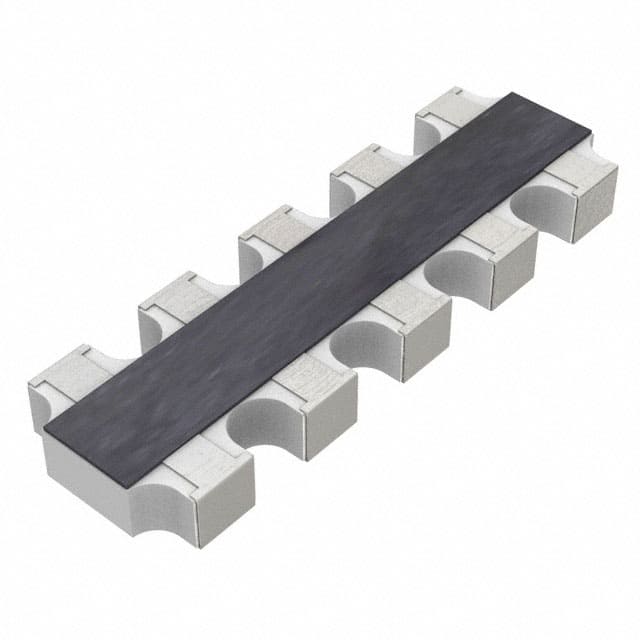

The Yageo YC158TJR-0710KL is a resistor network consisting of 8 resistors, each with a resistance of 10k Ohm and a tolerance of ±5%. It features a bussed configuration and is designed for surface mounting in a 1206 package. The device operates within a temperature range of -55°C to 155°C and is RoHS3 compliant. It is suitable for use in electronic circuits requiring multiple resistors in a compact form factor, such as in signal filtering, voltage divider, and biasing applications. The package dimensions are 3.20mm in length, 1.60mm in width, and 0.70mm in height, with 10 pins for mounting.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.05 | $0.05 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
Each resistor in the array has a resistance of 10k Ohm.
The resistors have a tolerance of ±5%.
The array contains 8 resistors.
It is in a 1206 package.
-55°C to 155°C.
Yes, it is RoHS3 compliant.
