| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
19 pcs
|
19 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Conductor Material | |
| Connector Type | |
| SVHC Present | |
| Type |

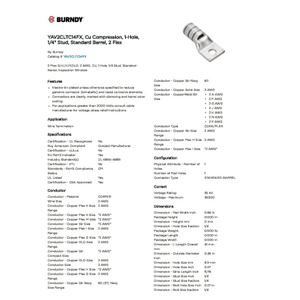

This Burndy YAV2CLTC14FX is a copper compression lug with a standard barrel and tin plating. It is designed for flex conductors and features a 1/4" stud size.
The lug has a 1-hole configuration and a straight tongue angle. It is rated for 35 kV and 600 V minimum voltage. The conductor size compatibility includes various copper flex and stranded options, including DLO sizes 3 and 2 AWG.
Key dimensions include a 1.62-inch overall length, a 0.27-inch bolt hole size, and a 11/16-inch strip length. The lug is also identified by the color code Brown and has a die index of 10.
This component is suitable for wire termination applications requiring a reliable and durable connection. Its tin-plated copper construction helps reduce galvanic corrosion and resist corrosive elements.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.16 | $1.16 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The Burndy YAV2CLTC14FX is compatible with various copper conductor sizes including 2 AWG for Flex G, H, I, K, M, Solid, and Stranded types, as well as specific DLO sizes like 3 (125/#24) DLO and 2 (150/#24) DLO.
The YAV2CLTC14FX compression lug has a KVA rating of 35 kV and a maximum voltage rating of 35000 V, with a minimum voltage rating of 600 V.
The Burndy YAV2CLTC14FX lug is made of copper and features tin electro plating.
Key dimensions include an overall length of 1.62 inches (41 mm), a bolt hole size of 0.27 inches (7 mm), and a strip length of 11/16 inches.
The stud size for the YAV2CLTC14FX compression lug is 1/4 inch.
The die index for the Burndy YAV2CLTC14FX is 10.
