| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
527 pcs
|
527 pcs | On Request | 1 | On Request | On Request | 1807+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Composition | |
| Features | |
| Height | |
| Lead Style | |
| Length | |
| Mounting Type | |
| Number of Terminations | |
| Operating Temperature | |
| Power (Watts) | |
| Resistance | |
| Supplier Device Package | |
| Temperature Coefficient | |
| Tolerance | |
| Width |

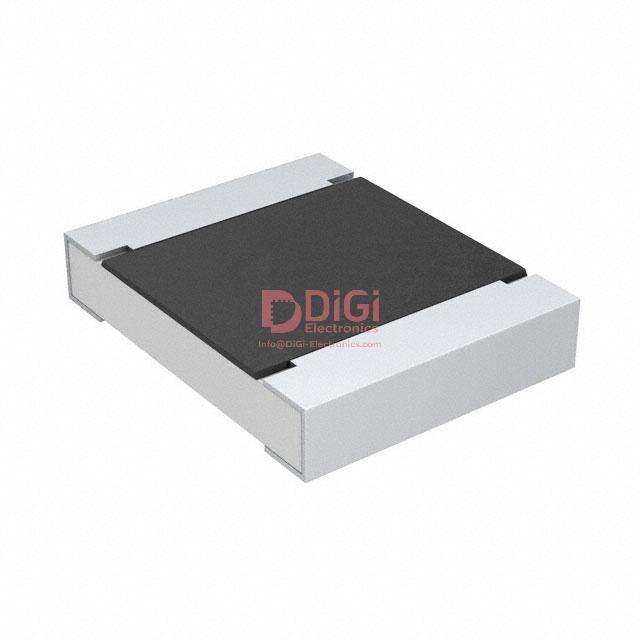

This Vishay Dale Y11212K00000A9R is a high-precision metal foil surface mount resistor designed for demanding applications. It features a resistance value of 2 kΩ with an exceptionally tight tolerance of ±0.05% and a power rating of 1/4W.
The resistor boasts a low temperature coefficient of resistance (TCR) of ±2ppm/°C, ensuring stable performance across a wide operating temperature range of -55°C to 175°C. Its construction utilizes metal foil technology, contributing to its non-inductive characteristics and suitability for pulse applications.
Packaged in a 2512 J-lead format, this component is designed for surface mounting. It also offers features such as moisture resistance, making it a reliable choice for various electronic designs. The component has 2 terminations.
Key electrical specifications include a 2 kΩ resistance, ±0.05% tolerance, and 1/4W power rating. The operating temperature range is -55°C to 175°C, with a TCR of ±2ppm/°C. Mechanical dimensions are 5.99mm in length, 3.20mm in width, and 2.79mm in height.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.02 | $0.02 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The resistance value is 2 kΩ.
The tolerance is ±0.05%.
The power rating is 0.25W, or 1/4W.
The temperature coefficient is ±2ppm/°C.
The operating temperature range is -55°C to 175°C.
The resistor is in a 2512 J-Lead package.
