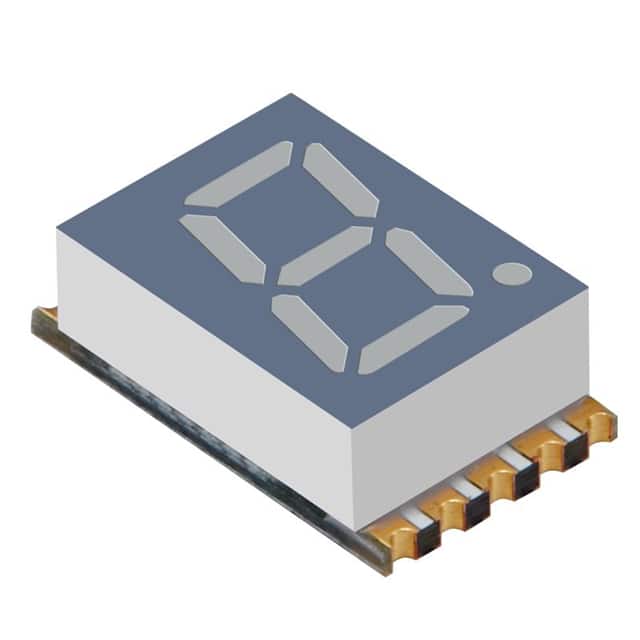

XZFVG07A The SunLED Corporation XZFVG07A is a green 7-segment numeric LED display with a 0.3 inch digit height. It operates with a typical forward voltage of 2V and a forward current of 10mA.
Mfr Part #:

XZFVG07A

Available from 1 distributors
Mfr Name: SunLED Corporation
SunLED Corporation
The SunLED Corporation XZFVG07A is a green 7-segment numeric LED display with a 0.3 inch digit height. It operates with a typical forward voltage of 2V and a forward current of 10mA.
✓ Total Stock: 37 pcs
$ Price Range: $0.99

XZFVG07A Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Speed Components Ltd ✓
Non-Authorised Inventory information
37 pcs
On Request
37 pcs On Request 1 On Request On Request 1518 On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

XZFVG07A Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Capacitance
Color
Common Pin
Current
Digit
Display Type
Millicandela Rating
Mounting Type
Number of Characters
Power Dissipation (Max)
Reverse Current
Reverse Voltage
Voltage
Wavelength
View Similar Products (0)

XZFVG07A Description

Short technical summary and product information.

The XZFVG07A from SunLED Corporation is a single-digit, 7-segment numeric display featuring a green emitting color. It has a digit height of 0.3 inches (7.62mm) and a standard configuration with a gray face and white segments.



Key electrical specifications include a typical forward voltage of 2V at 10mA, a maximum forward current of 30mA, and a peak forward current of 150mA under specific duty cycle conditions. The display has a maximum power dissipation of 75mW. The peak emission wavelength is 574nm, with a dominant wavelength of 570nm and a spectral line width at half maximum of 20nm. Luminous intensity is typically 12mcd at 10mA.



This display is housed in a 10-SMD, No Lead package suitable for surface mounting. It operates within a temperature range of -40°C to +85°C and has a storage temperature range of -40°C to +85°C. The standard package quantity is 550 pieces per reel. The MSL rating is 2a.



This component is suitable for various display applications where a clear, green numeric readout is required. Its robust package and low power consumption make it a reliable choice for integration into electronic devices.

XZFVG07A Quick Information

Product Type: LED Display
Canonical Name: XZFVG07A 7-Segment Green LED Display
Subcategory: 7-Segment

XZFVG07A Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 2a
REACH Status: REACH Unaffected

XZFVG07A Estimated Pricing

Qty Low High
1+ $0.99 $0.99

Estimated market price range - modelled values for guidance only, not live distributor offers.

XZFVG07A Features

  • 0.3 inch digit height.
  • Green emitting color.
  • Surface mount 10-SMD package.
  • Typical 2V forward voltage.
  • 550 pieces per reel standard package.

XZFVG07A Applications

  • Ideal for numeric displays.
  • Suitable for status indicators.
  • Used in control panels.
  • Applicable in instrumentation.

XZFVG07A FAQs

5 frequently asked questions generated from this part’s specifications.
What is the typical forward voltage for the XZFVG07A display?

The typical forward voltage for the XZFVG07A display is 2V at a forward current of 10mA.

What is the digit height of the XZFVG07A LED display?

The digit height of the XZFVG07A LED display is 0.30 inches (7.62mm).

What is the standard package quantity for the XZFVG07A?

The standard package quantity for the XZFVG07A is 550 pieces per reel.

What is the operating temperature range for this display?

The operating temperature range for this display is -40°C to +85°C.

What is the MSL rating for the XZFVG07A?

The MSL rating for the XZFVG07A is 2a.
