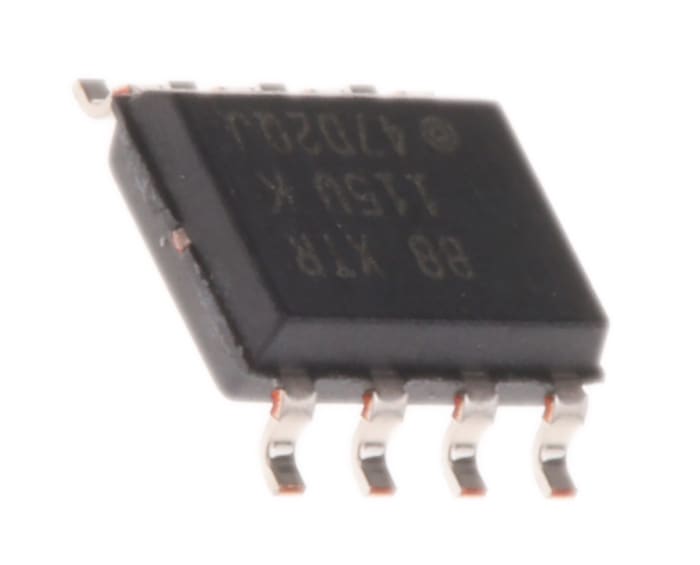

XTR115 The Texas Instruments XTR115U is a current loop transmitter designed for industrial applications. It features a 200μA supply current and operates with a 5V regulator voltage.
Mfr Part #:

XTR115

Available from 1 distributors
Mfr Name: B&B Smartworx
B&B Smartworx
The Texas Instruments XTR115U is a current loop transmitter designed for industrial applications. It features a 200μA supply current and operates with a 5V regulator voltage.
✓ Total Stock: 57 pcs
$ Price Range: $2.02

XTR115 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Partservice ✓
Non-Authorised Inventory information
57 pcs
On Request
57 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

XTR115 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Failure Rate
Height
Length
Product Type
Quiescent Current
Supply Current
View Similar Products (0)

XTR115 Description

Short technical summary and product information.

The Texas Instruments XTR115U is a surface-mount current loop transmitter housed in an 8-pin SOIC package. It is designed for use in electrically noisy industrial environments, enabling the transmission of analog sensor data over long distances.



Key electrical specifications include a typical supply current of 200μA and a quiescent current of 250μA. The device operates with a 5V regulator voltage and supports a minimum supply voltage of 7.5V up to a maximum of 36V. The operating temperature range is from -40°C to 85°C.



Mechanical dimensions include a length of 4.9mm and a height of 1.58mm. The XTR115U is part of the XTR115 series and is suitable for applications requiring robust current loop communication.

XTR115 Quick Information

Product Type: Current Loop Transmitter
Series: XTR115
Canonical Name: XTR115U Current Loop Transmitter

XTR115 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

XTR115 Estimated Pricing

Qty Low High
1+ $2.02 $2.02

Estimated market price range - modelled values for guidance only, not live distributor offers.

XTR115 Features

  • Surface mount 8-pin SOIC package.
  • 200μA typical supply current.
  • 5V regulator voltage.
  • Wide operating temperature range.
  • Designed for current loop communication.

XTR115 Applications

  • Suitable for industrial current loop systems.
  • Used in long-distance sensor data transmission.
  • Ideal for noisy industrial environments.
  • Applicable in process control and automation.
  • Designed for current regulation in transducers.

XTR115 FAQs

5 frequently asked questions generated from this part’s specifications.
What is the supply current for the XTR115U?

The typical supply current is 200μA.

What is the regulator voltage for the XTR115U?

The regulator voltage is 5V.

What is the operating temperature range of the XTR115U?

The operating temperature range is -40°C to 85°C.

What package type is the XTR115U?

The package type is SOIC.

How is the XTR115U mounted?

It is a surface mount device.
