| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,500 pcs
|
3500 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Input Type | |
| Mounting Type | |
| Noise | |
| Operating Temperature | |
| Supplier Device Package | |
| Supplier Package | |
| Type | |
| Voltage Reference |
The Burr-Brown XTR104BU is an instrumentation amplifier categorized under Sensor and Detector Interfaces. It is designed to provide a 4-20mA output current, making it suitable for various current transmission applications.
Key electrical specifications include a typical output current range of 4-20mA, an over-scale limit of 40mA, and an under-scale limit of 3.8mA. The device offers a total adjusted error of ±2% of FS over its operating temperature range. It features a span equation of S = 0.016 + 40/R G A/V and a typical input differential range of 100mV.
The XTR104BU operates within a wide power supply voltage range of 9V to 40V. Its operating temperature range is specified from -40°C to 85°C, with derated performance up to 125°C. The component has a typical junction-to-ambient thermal resistance of 80°C/W.
Packaged in a 16-SOIC format, the XTR104BU is designed for surface mounting. Its compliance status includes RoHS3 Compliant, MSL 1 Unlimited, and REACH Unaffected, though these are treated with low confidence due to lack of verification.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.65 | $2.65 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The specified output current range is 4mA to 20mA.
The operating temperature range is -40°C to 85°C.

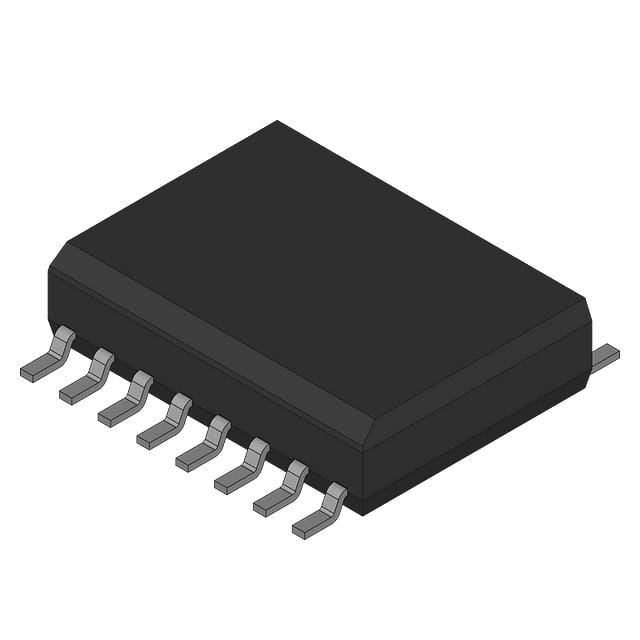

The XTR104BU is available in a 16-SOIC package.
The XTR104BU is a surface mount device.
The power supply voltage range is 9V to 40V.
