| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,700 pcs
|
2700 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| CCT (K) | |
| CRI (Color Rendering Index) | |
| Color | |
| Current | |
| Flux @ 85ﾂｰC, Current | |
| Height | |
| Length | |
| Lumens | |
| Mounting Type | |
| Viewing Angle | |
| Voltage | |
| Width |

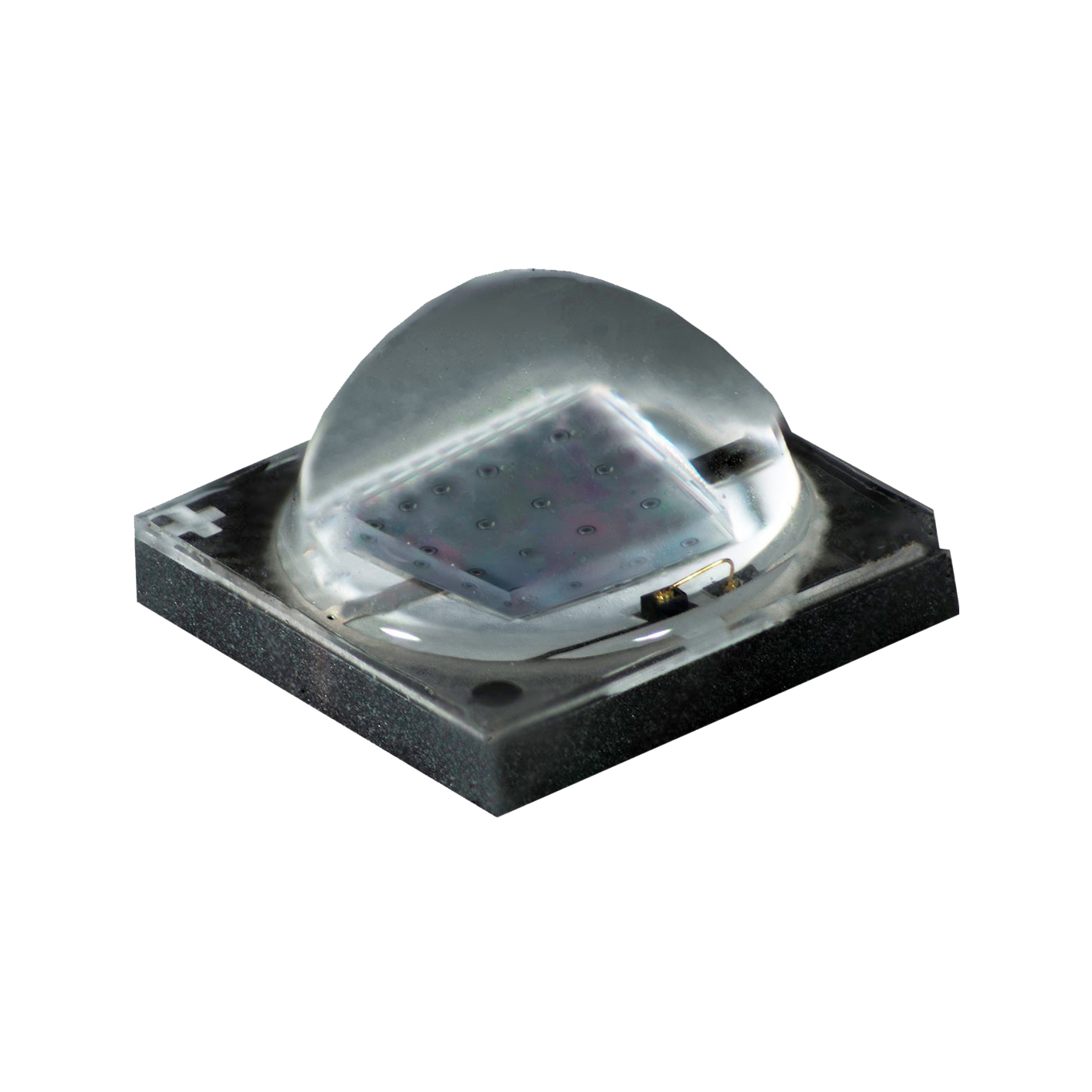

This CreeLED, Inc. XTEAWT-00-0000-00000HFE6 is a warm white LED designed for surface mount applications. It operates with a typical forward current of 350mA and a typical forward voltage of 2.9V.
The LED features a color temperature of 3500K and a Color Rendering Index (CRI) of 80, providing warm white illumination. It delivers a luminous efficacy of 124 lm/W and a typical luminous flux of 126 lm at 85°C and the specified current. The viewing angle is 115°.
Packaged in a 1414 (3535 Metric) case, this LED has dimensions of 3.45mm in length and width, and a height of 2.54mm. It is suitable for various lighting applications requiring reliable warm white light output.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The typical forward current for this LED is 350 mA.
The typical forward voltage is 2.9V.
The color temperature is 3500K.
The CRI is 80.
The luminous efficacy is 124 lm/W.
The package dimensions are 3.45mm in length and width, with a height of 2.54mm.
The viewing angle is 115°.
