| Category | |
| Manufacturer Name | |
| Color | |
| Label Size | |
| Label Type | |
| Material |

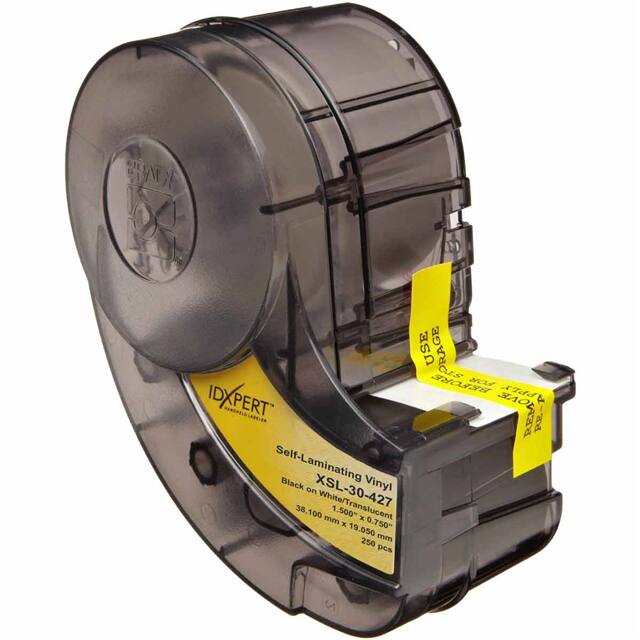

The Brady XSL-30-427 is a self-laminating vinyl label designed for wire and cable identification. It features a white printable zone and a translucent over-laminating area that protects printed text from abrasion and chemicals. The label measures 0.75 inches wide by 1.50 inches long (19.1 mm x 38.1 mm) and is made of thermal transfer printable vinyl with a permanent acrylic adhesive. Physical properties include a total thickness of 0.102 mm, adhesion to stainless steel of 42 N/100 mm after 20 minutes and 54 N/100 mm after 24 hours, and adhesion to polypropylene of 28 N/100 mm and 36 N/100 mm respectively. Tack is 378 g. Tensile strength is 210 N/100 mm in machine direction and 193 N/100 mm in cross direction, with elongation of 152% and 195% respectively. The label has a flammability rating of average burn time less than 10 seconds. High service temperature is 70 °C for 30 days, low service temperature is -70 °C for 30 days. The adhesive is a permanent acrylic type. This label is intended for use with Brady R4300, R4400, R4500, R6200, and R6700 series thermal transfer ribbons. It is UL Recognized to UL969A and UL2238 when printed with specified ribbons. Applications include wire and cable identification in industrial settings where durability and clarity are required.
| Qty | Low | High |
|---|---|---|
| 1+ | $97.57 | $97.57 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The label can withstand temperatures from -70°C to 70°C for 30-day exposure.
It is indicated as RoHS3 compliant, but this claim is unverified.
The label size is 0.75 inches wide by 1.50 inches long (19.1 mm x 38.1 mm).
The label material is vinyl.
Thermal transfer printing is required, using recommended Brady ribbons.
Adhesion is 42 N/100 mm after 20 minutes and 54 N/100 mm after 24 hours.
The adhesive is permanent acrylic.
