XS1000-48N-003
Advanced Energy
The Advanced Energy XS1000-48N-003 is an enclosed AC/DC converter with a 1008W power output and 48V voltage. It features chassis mounting and a universal input.
| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Type | |
| Voltage | |
| Width |

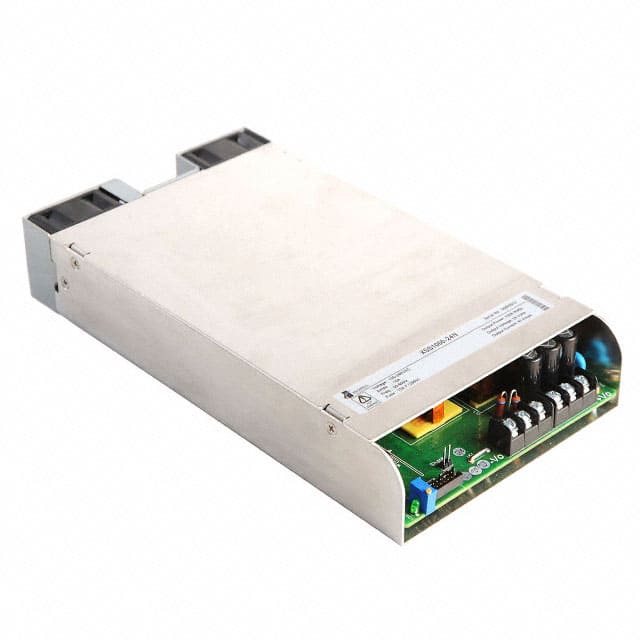

This Advanced Energy XS1000-48N-000 is an enclosed AC/DC converter designed for demanding applications. It provides a robust 1008W power output with a stable 48V output voltage and a high efficiency of 92%.
The converter is suitable for ITE (Commercial) and Medical applications, offering features such as adjustable output, remote on/off control, and a standby output. Its chassis mount design facilitates integration into various systems.
Key electrical specifications include a 21A current output and 4kV insulation voltage. The operating temperature range is -40°C to 70°C with derating. The dimensions are 238.0mm in length, 128.0mm in width, and 40.6mm in height.
The output voltage is 48V.
The power output is 1008W.
The operating temperature range is -40°C to 70°C with derating.
The efficiency is 92%.
It uses chassis mount.
