| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Medical Grade | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Type | |
| Voltage | |
| Width |

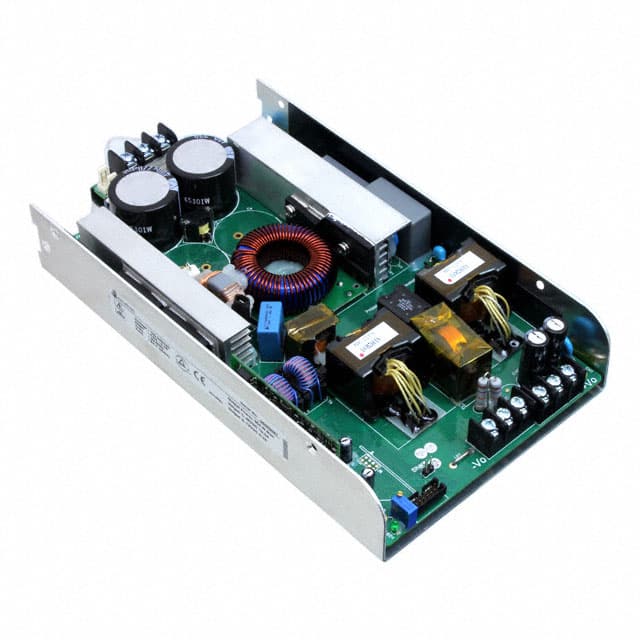

The Advanced Energy XS1000-36N-000 is an enclosed AC/DC power converter with a maximum output power of 1008W and an output voltage of 36V. It boasts high efficiency at 92% and operates within a temperature range of -40°C to 70°C with derating.
Designed for ITE (Commercial) and Medical applications, this converter features adjustable output, remote on/off, standby output, and universal input. Its dimensions are 238.0mm in length, 128.0mm in width, and 40.6mm in height. The unit is chassis mountable and provides 4 kV of isolation voltage.
Key features include its robust construction for industrial environments and compliance with safety standards such as CE and cTUVus. The converter is suitable for applications requiring reliable and efficient power conversion.
36V.
1008W.
-40°C to 70°C with derating.
92%.
4 kV.
Chassis mount.
238.0mm x 128.0mm x 40.6mm.
