XS1000-24N-007
Advanced Energy
The Advanced Energy XS1000-24N-007 is an enclosed AC/DC converter with a 1008W output power and 24V rating. It features chassis mount capability and universal input.
| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Industrial Grade | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Type | |
| Voltage |

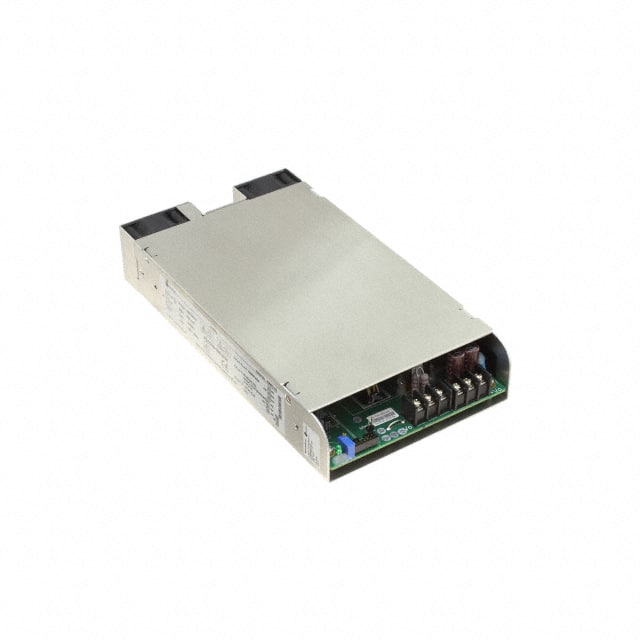

The Advanced Energy XS1000-24N-001 is an enclosed AC/DC power converter designed for ITE (Commercial) and Medical applications. It provides a robust 1008W of power with a 24V output.
Key electrical specifications include a current rating of 42A and an efficiency of 92%. The converter operates across a wide temperature range of -40°C to 70°C, with derating applied. It supports adjustable output, remote on/off, and standby output features, along with universal input capability.
Mechanically, the unit is designed for chassis mounting and has dimensions of 238.0mm in length, 128.0mm in width, and 40.6mm in height. It meets CE and cTUVus approval agency standards, ensuring compliance for various applications.
This converter is suitable for applications requiring reliable and efficient power conversion in commercial and medical equipment.
-40°C to 70°C with derating.
92%.
1008W.
42 A.
Chassis Mount.
238.0mm x 128.0mm x 40.6mm.
ITE (Commercial) and Medical.
