| Category | |
| Manufacturer Name | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| SVHC Present | |
| Supplier Device Package | |
| Topology | |
| Voltage Supply |
The XRP7714ILB-0X10-F from MaxLinear, Inc. is a versatile power management integrated circuit designed for DC-DC conversion applications. This device functions as a 5-output regulator, incorporating both Buck (Synchronous) and Linear (LDO) topologies. It supports a wide input voltage range from 4.75V to 25V and operates at a switching frequency of 1.5MHz.

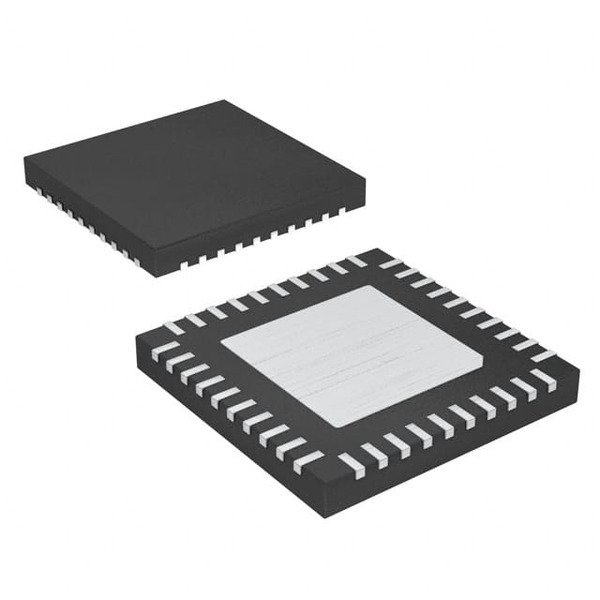

The XRP7714ILB-0X10-F is housed in a 40-TQFN (6x6) package, suitable for surface mount applications. The operating temperature range is specified from -40°C to 125°C, ensuring reliable performance in various environmental conditions. This component is part of the PowerXR series, offering a robust solution for power management needs in electronic designs.
Key specifications include its ability to manage multiple outputs, combining step-down buck conversion with linear regulation. The device is RoHS compliant and comes in tray packaging, designed for efficient handling and integration into manufacturing processes.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.78 | $0.78 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating voltage range is 4.75V to 25V.
The switching frequency is 1.5MHz.
The XRP7714ILB-0X10-F has 5 outputs.
The operating temperature range is -40°C to 125°C.
It is supplied in a 40-TQFN (6x6) package.
