| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
25,000 pcs
|
25000 pcs | On Request | 1 | On Request | On Request | 13+ | On Request | On Request | |
|
250 pcs
|
250 pcs | On Request | 1 | On Request | On Request | 20+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Function | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Configuration | |
| Output Current | |
| Output Type | |
| Package / Case | |
| Synchronous Rectifier | |
| Topology |

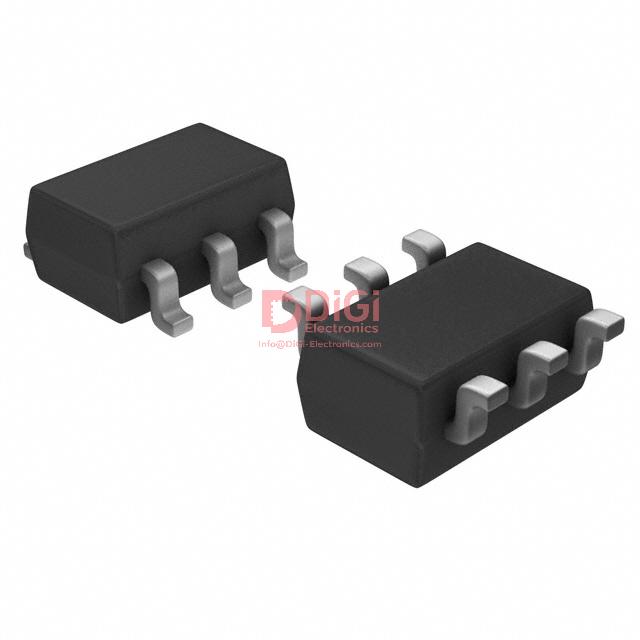

The XRP7659ISTR-F from Exar is a versatile step-down (buck) switching regulator IC. It is designed to provide a stable and adjustable output voltage, ranging from 0.8V to 15V, with a maximum output current capability of 1.2A. This component operates efficiently within an input voltage range of 4.5V to 24V and features a switching frequency of 1.4MHz.
The regulator is housed in a compact SOT-23-6 surface-mount package, making it suitable for space-constrained applications. Its topology is a buck converter, and it provides a positive output configuration. The operating temperature range is specified from -40°C to 85°C (TA), ensuring reliable performance in various environmental conditions.
This IC is ideal for power management applications requiring efficient voltage regulation. Its adjustable output feature allows for flexibility in design, while the surface-mount package simplifies integration into printed circuit boards. The XRP7659ISTR-F is a component for power supply circuits where precise and efficient voltage conversion is necessary.
The output voltage is adjustable from 0.8V to 15V.
The maximum output current is 1.2A.
The input voltage range is from 4.5V to 24V.
The switching frequency is 1.4MHz.
It is in a SOT-23-6 package for surface mounting.
The operating temperature range is -40°C to 85°C.
