| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
7 pcs
|
7 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| CCT (K) | |
| CRI (Color Rendering Index) | |
| Color | |
| Current | |
| Height | |
| Junction Temperature | |
| Length | |
| Lumens | |
| Mounting Type | |
| Supplier Device Package | |
| Viewing Angle | |
| Voltage | |
| Width |

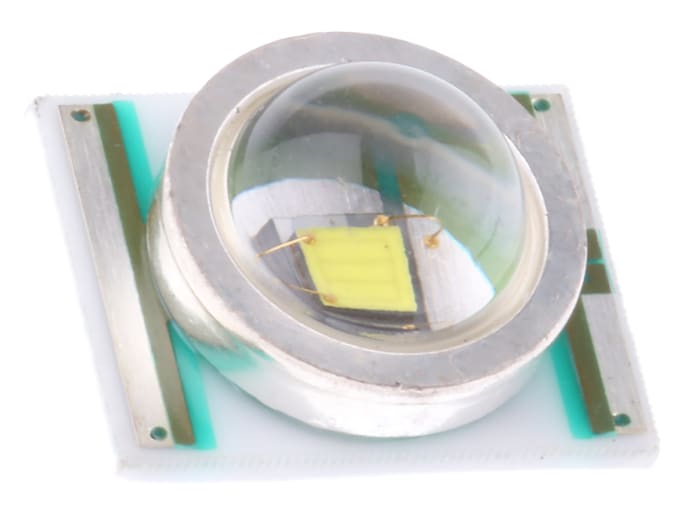

This Cree LED, part number XREWHT-L1-0000-00C02, is a white LED belonging to the XLamp XR-E series. It is designed for surface mounting and operates with a typical forward voltage of 3.3V and a typical forward current of 350mA. The LED provides a cool white light with a color temperature of 6350K and a CRI of 75. It has a wide viewing angle of 90 degrees and a luminous efficacy of 100 lm/W.
The LED is packaged on a reel and features a compact SMD package. Its dimensions are 9.00mm in length and 7.00mm in width, with a height of 4.60mm. The maximum forward current is rated at 1000mA, and the maximum junction temperature is 150°C. This component is suitable for various lighting applications requiring high efficacy and long lifetime.
Compliance information indicates RoHS3 compliance, MSL 1, and REACH unaffected status. The LED is designed for high-performance lighting solutions.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The typical forward voltage for the XREWHT-L1-0000-00C02 LED is 3.3V.
The typical forward current for this Cree LED is 350mA.
The color temperature of the XREWHT-L1-0000-00C02 LED is 6350K.
The viewing angle of this LED is 90°.
The XREWHT-L1-0000-00C02 LED is supplied on a reel.
