| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Compliance | |
| Current | |
| Efficiency | |
| Height | |
| Input Voltage | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Power (Watts) | |
| Tape & Reel | |
| Type | |
| Voltage | |
| Width |
The Bel Power Solutions RCM60 Series, including the XRCM60-15 model, are reliable DC-DC converters designed for railway and transportation applications. These converters deliver 60W of power with a nominal output voltage of 15VDC and can handle an input voltage range from 8 to 137.5 VDC.
Key features include an ultra-wide input voltage range, single output voltage, and protection against overtemperature, overvoltage, overcurrent, and short-circuit. The converters boast high efficiency, low inrush current, and a conformal coated PCB for durability. They operate within an ambient temperature range of -40°C to 70°C.

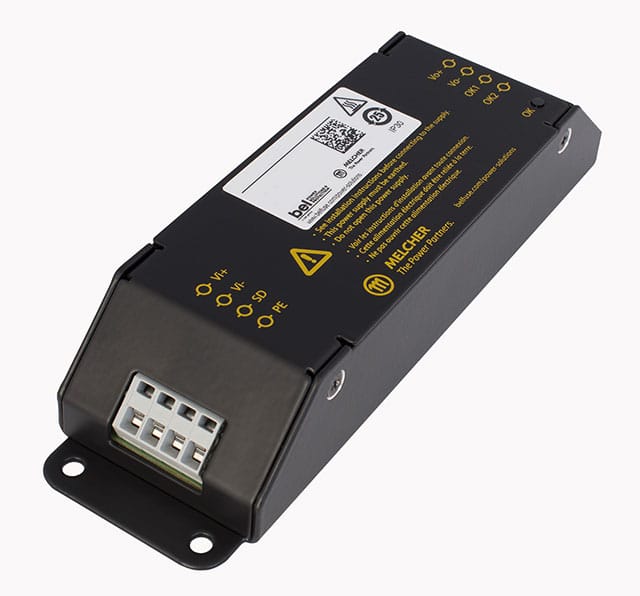

The XRCM60-15 is designed for chassis mounting and features an enclosed housing. Its dimensions are 172mm x 50mm x 32mm. Compliance with various standards such as EN50155, EN50121-3-2, EN61373, and AREMA, along with safety approvals to IEC 62368-1 and CSA/UL 62368-1, makes it suitable for demanding environments.
Options available for this series include output ORing FET for redundant operation, input fuse, and output voltage monitoring. The RCM60 Series is also E-mark approved to UN Regulation R10.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The XRCM60-15 has a nominal output voltage of 15VDC, with a range of 12-24 VDC.
The input voltage range for the XRCM60-15 is 8 to 137.5 VDC.
The XRCM60-15 has a power rating of 60W.
The operating temperature range is -40°C to 70°C.
The XRCM60-15 is designed for chassis mounting.
The RCM60 Series is compliant to EN50155, EN50121-3-2, EN61373, AREMA, EN45545-2, NFPA 130, and UN Regulation R10.
