| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
40,000 pcs
|
40000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Data Rate (Max) | |
| FIFOs | |
| Mounting Type | |
| Number of Channels | |
| Protocol | |
| Supplier Device Package | |
| Voltage | |
| With Auto Flow Control | |
| With False Start Bit Detection | |
| With IrDA Encoder | |
| With Modem Control |
The MaxLinear XR17V352IB113-F is a single-chip, 2-channel PCI Express UART designed for demanding applications. It bridges a single PCIe lane to two independent, enhanced 16550-compatible UARTs, compliant with PCIe 2.0 Gen 1 standards.
Key features include 256-byte TX and RX FIFOs, programmable trigger levels, fractional baud rate generation, and automatic hardware or software flow control. The device supports RS-485 half-duplex direction control, multi-drop communication with auto-address detection, and an IrDA 1.1 encoder/decoder. It operates from a single 3.3V supply and includes an internal buck regulator for a 1.2V core.
This UART also provides 16 multi-purpose I/Os (MPIOs) and a 16-bit general-purpose timer/counter. It is suitable for applications requiring high-speed serial communication, such as next-generation Point-of-Sale systems, remote access servers, storage network management, and factory automation.

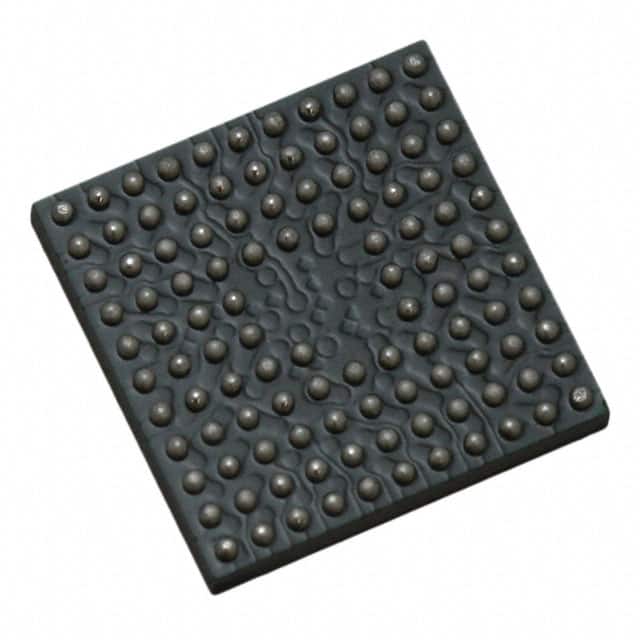

The XR17V352IB113-F is available in a compact 113-pin FPBGA package measuring 9x9 mm and supports surface mount.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum serial data rate is 31.25 Mbps.
The operating voltage is 3.3V.
It is supplied in a 113-FPBGA (9x9 mm) package for surface mounting.
Yes, it supports RS-485 half-duplex direction control.
Each UART channel has 256-byte TX and RX FIFOs.
