| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1 pcs
|
1 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Co | |
| Connector Type | |
| Core Processor | |
| Flash Size | |
| Lead Spacing | |
| Length | |
| Memory | |
| Module | |
| Operating Temperature | |
| RAM Size | |
| Tape & Reel | |
| Width |

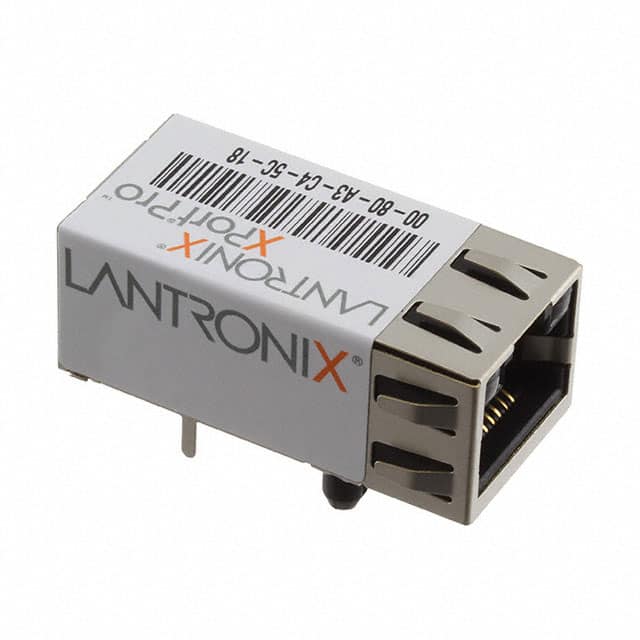

The Lantronix XPort Pro XPP100200S-02R is a highly integrated embedded networking server designed for demanding applications. It boasts a powerful 32-bit processor and ample onboard memory, with 16MB of SDRAM and 16MB of Flash memory, providing flexibility for custom applications.
This device server supports various network protocols including TCP/IP, UDP/IP, and HTTP, with a 10/100Base-TX network interface via an RJ45 connector. It offers robust security features such as SSLv3 and SSHv2 client and server capabilities, with selectable encryption bit lengths and authentication methods.
The XPort Pro is footprint compatible with the original XPort and is designed for easy integration. It operates within a temperature range of -40°C to 85°C and comes in a compact form factor with dimensions of 16.00mm x 33.90mm. The module supports software-selectable serial interface data rates up to 921kbps and includes programmable I/O pins.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.50 | $2.50 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The XPort Pro features an IPv6 core processor with a 32-bit architecture.
The XPort Pro is equipped with 16MB of SDRAM and 16MB of Flash memory.
The operating temperature range is from -40°C to 85°C.
The XPort Pro uses an RJ45 connector for its network interface.
It supports protocols such as TCP/IP, UDP/IP, ARP, ICMP, SNMPv2, TFTP, FTP, Telnet, DHCP, BOOTP, HTTP, SMTP, SSHv2, SSLv3, PPP, AutoIP, RSS, and SYSLOG.
Security features include SSLv3 and SSHv2 client & server, with selectable 128/256/512/1024 Bit certificates, AES, 3DES, RC4 encryption, and SHA-1, MD5, Base-64 User Access Lists authentication.
