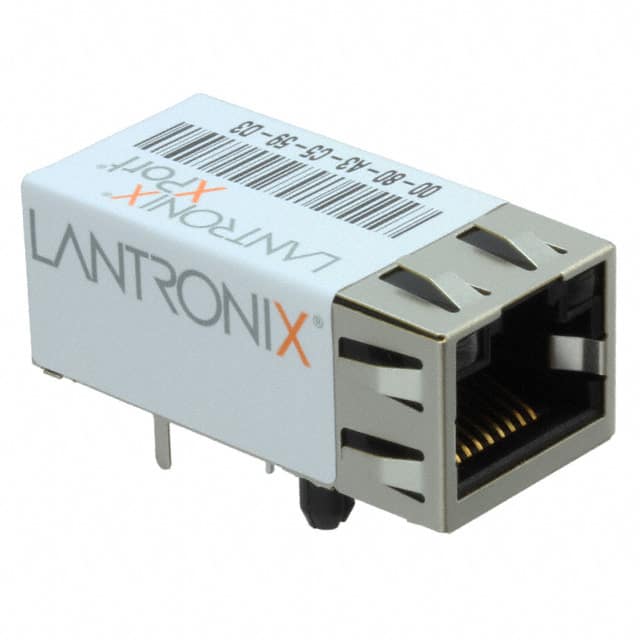

XP1001000M-05R The Lantronix XP1001000M-05R is an embedded device server featuring a DSTni-EX core, 25MHz speed, 256KB RAM, and 512KB Flash memory. It offers 10Base-T/100Base-TX Ethernet connectivity and 256-bit AES encryption for secure communications.
Mfr Part #:

XP1001000M-05R

Available from 1 distributors
Mfr Name: Lantronix, Inc.
Lantronix, Inc.
The Lantronix XP1001000M-05R is an embedded device server featuring a DSTni-EX core, 25MHz speed, 256KB RAM, and 512KB Flash memory. It offers 10Base-T/100Base-TX Ethernet connectivity and 256-bit AES encryption for secure communications.
✓ Total Stock: 10 pcs
$ Price Range: $2.50

XP1001000M-05R Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
10 pcs
On Request
10 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

XP1001000M-05R Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Co
Connector Type
Core Processor
Flash Size
Length
Module
Operating Temperature
RAM Size
Speed
Width
View Similar Products (0)

XP1001000M-05R Description

Short technical summary and product information.

The Lantronix XP1001000M-05R is a compact embedded device server designed to simplify the integration of network connectivity into electronic products. Powered by the DSTni™ network processor SoC, it includes a 10/100 MAC/PHY and 256 KB of SRAM, operating at 25MHz.



This module features 512 KB of on-module Flash for web pages and software upgrades. It acts as a dedicated co-processor, optimizing network activities and allowing the host microprocessor to function at maximum efficiency. The device supports secure communications with 256-bit AES encryption and includes a built-in web server for remote configuration, monitoring, and troubleshooting via a standard internet browser.



With a compact form factor measuring 14.50mm x 18.30mm and an RJ45 connector, the XP1001000M-05R is designed for easy embedding. It operates within a temperature range of -40°C to 85°C, making it suitable for various industrial applications. The module is RoHS3 compliant and has an MSL of 1.

XP1001000M-05R Quick Information

Product Type: Embedded Device Server
Series: XPort AR
Canonical Name: Lantronix, Inc. XPort AR Embedded Device Server
Subcategory: Microprocessor Modules

XP1001000M-05R Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

XP1001000M-05R Estimated Pricing

Qty Low High
1+ $2.50 $2.50

Estimated market price range - modelled values for guidance only, not live distributor offers.

XP1001000M-05R Features

  • Embedded device server with DSTni-EX core.
  • 25MHz clock speed and 256KB RAM.
  • 512KB Flash for web pages and upgrades.
  • 10Base-T/100Base-TX Ethernet connection.
  • 256-bit AES encryption for secure communications.

XP1001000M-05R Applications

  • Enables remote diagnostics and upgrades.
  • Supports asset tracking and replenishment.
  • Facilitates automation and control systems.
  • Enables remote collaboration features.
  • Provides personalized content delivery.

XP1001000M-05R FAQs

7 frequently asked questions generated from this part’s specifications.
What is the core processor of the XP1001000M-05R?

The core processor is DSTni-EX.

What is the operating speed of the XP1001000M-05R?

The operating speed is 25MHz.

How much RAM does the XP1001000M-05R have?

It has 256KB of RAM.

What is the Flash memory size of the XP1001000M-05R?

The Flash memory size is 512KB.

What is the operating temperature range for this module?

The operating temperature range is -40°C to 85°C.

What type of Ethernet connection does the XP1001000M-05R support?

It supports 10Base-T/100Base-TX Ethernet connections.

Does the XP1001000M-05R offer encryption?

Yes, it features 256-bit AES encryption for secure communications.

XP1001000M-05R Alternate Parts

Same form/fit/function or matching attribute configuration across different manufacturers.
View All Alternate Parts
XP1001000-05R
XP1001000-05R
Lantronix, Inc.
The Lantronix XP1001000-05R is an embedded device server module featuring a DSTni-EX core processor. It provides 10/100 Ethernet connectivity and 256-bit AES encryption.
View Part
