| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4 pcs
|
4 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| CCT (K) | |
| CRI (Color Rendering Index) | |
| Color | |
| Current | |
| Flux @ 85ﾂｰC, Current | |
| Height | |
| Length | |
| Lumens | |
| Mounting Type | |
| Supplier Device Package | |
| Viewing Angle | |
| Voltage | |
| Width |

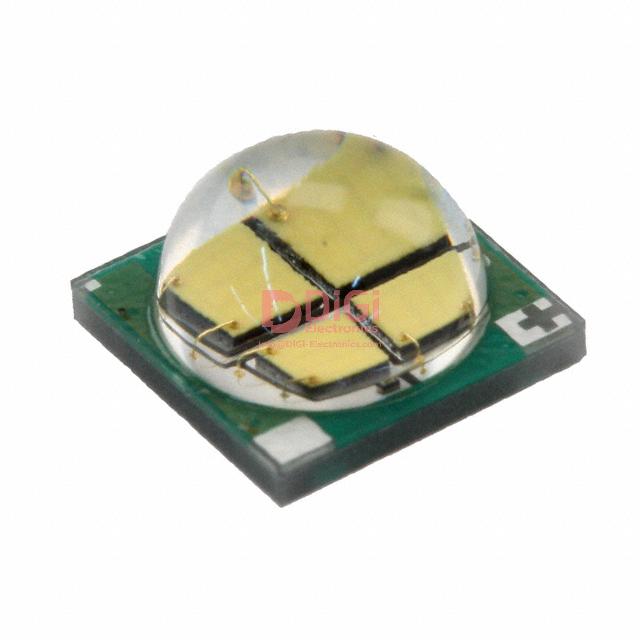

The CreeLED, Inc. XMLEZW-00-0000-0B00T527F is a warm white LED from the EasyWhite, XLamp XM-L series. It offers a correlated color temperature (CCT) of 2700K with a 4-Step MacAdam Ellipse for consistent color.
This LED is designed for surface mounting and comes in a 2020 (5050 Metric) package. Key electrical specifications include an operating voltage of 6V and a current rating of 700mA. It provides a luminous flux of 260lm to 280lm at 85°C and 700mA, with an efficacy of 64 lm/W. The viewing angle is 115°.
Mechanical dimensions include a length and width of 5.00mm (0.197") and a height of 3.15mm (0.124"). The CRI (Color Rendering Index) is 82 (Typ). This component is suitable for various lighting applications requiring warm white illumination.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The CCT is 2700K 4-Step MacAdam Ellipse.
The operating voltage is 6V.
The current rating is 700mA.
The viewing angle is 115°.
The package type is 2020 (5050 Metric).
This LED is designed for surface mount.
The CRI is 82 (Typ).
