| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,000 pcs
|
1000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| CCT (K) | |
| Color | |
| Color Rendering Index | |
| Current | |
| Flux @ 85ﾂｰC, Current | |
| Forward Current | |
| Forward Voltage | |
| Height | |
| Length | |
| Lumens | |
| Luminous Flux | |
| Mounting Type | |
| Power Rating | |
| Reverse Voltage | |
| Supplier Device Package | |
| Thermal Resistance | |
| Viewing Angle | |
| Voltage | |
| Width |

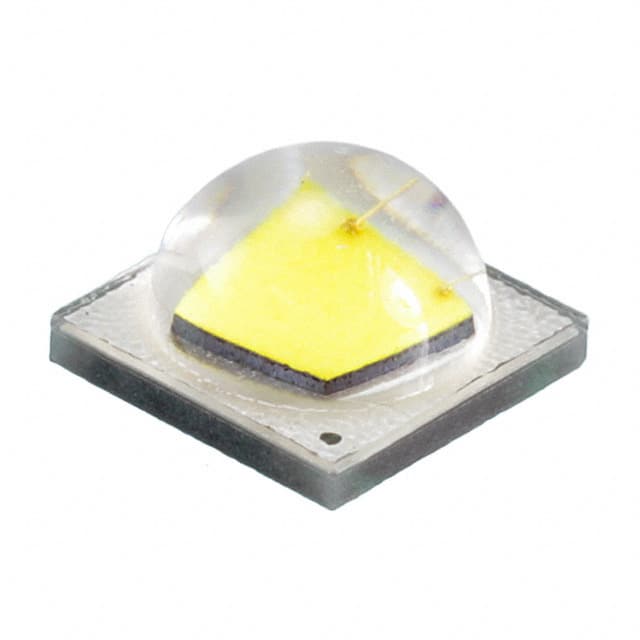

The CreeLED, Inc. XLamp XMLBWT series LED is designed for applications requiring high light output and maximum efficacy. This specific model, XMLBWT-00-0000-0000T50E2, features a cool white illumination color with a correlated color temperature (CCT) of 5700K and a color rendering index (CRI) of 65.
With a typical forward voltage of 2.85V and a forward current of 700mA, it delivers a luminous flux of 260 lumens, resulting in a luminous efficacy of 135 lm/W. The LED has a wide viewing angle of 125 degrees and a maximum power rating of 10W.
Mechanically, the component measures 5.00mm x 5.00mm x 3.15mm and is designed for surface mounting. It is supplied in a SMD-2 package, available in Cut Tape, Mouse Reel, or Reel formats. The low thermal resistance of 0.75°C/W is beneficial for thermal management in lighting designs.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The typical forward voltage is 2.85V at 700mA.
The maximum reverse voltage is 5V.
The luminous flux is 260 lumens at 700mA.
The color temperature is 5700K.
It uses an SMD-2 package.
Yes, it is RoHS3 compliant.
