Mfr Part #:

XLG-100-H-AB

Mfr Name: MWL

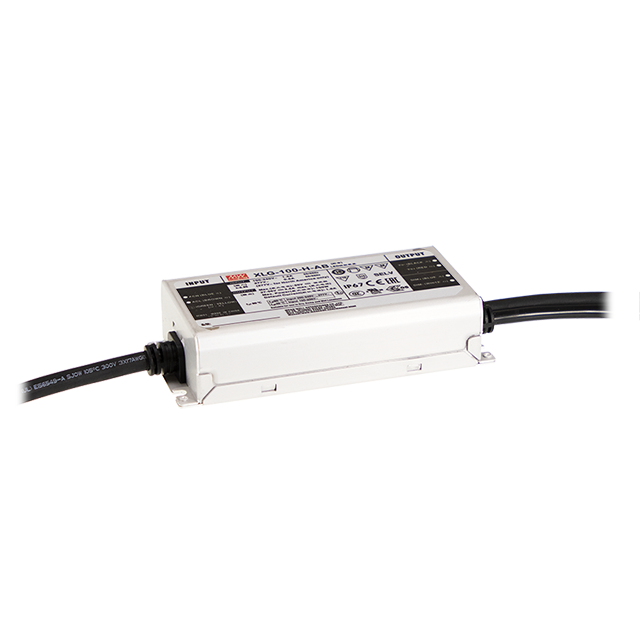

The Mean Well XLG-100-H-AB is an IP67-rated constant current LED driver providing 27-56V output at 2.1A. It features 0-10V and PWM dimming capabilities within a rugged, potted metal housing.

✓ Total Stock: 22 pcs

XLG-100-H-AB Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Husky International Electronic ✓ Non-Authorised Inventory information	22 pcs On Request	22 pcs	On Request	1	On Request	On Request	N/A	On Request	On Request

XLG-100-H-AB Specifications Quick View

Most important parameters for selection – full specs in datasheet.

SELECT ALL

Category	New Products
Manufacturer Name	MWL
Housing Material	Metal
Ingress Protection	IP67
Input Voltage	85-305 VAC
Output Current	2.1 A
Output Voltage	27-56 VDC

View Similar Products (0)

XLG-100-H-AB Description

Short technical summary and product information.

The Mean Well XLG-100-H-AB is a high-performance AC-DC LED driver designed for demanding outdoor and industrial lighting environments. Rated to IP67 standards, the unit features a fully potted metal housing that provides superior protection against dust and water ingress. It operates on an input voltage range of 85-305VAC and delivers a stable output of 27-56VDC at up to 2.1A.

This driver supports constant current and constant power modes, ensuring consistent LED performance across varying conditions. Integration is simplified through its versatile 3-in-1 dimming interface, which accepts 0-10V DC and PWM signals via galvanically isolated terminals. Heat dissipation relies on natural convection cooling, eliminating the need for active fans.

Engineered for reliability, the XLG-100-H-AB meets modern safety norms and is built for long-term deployment in street lighting, floodlights, and architectural fixtures. Its wide operating voltage range and robust construction make it a practical choice for municipal and commercial illumination projects requiring durable, maintenance-free power solutions.

XLG-100-H-AB Quick Information

Product Type: LED Driver

Series: XLG-100

Canonical Name: XLG-100-H-AB LED Driver

Subcategory: Constant Current / Constant Power

XLG-100-H-AB Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

XLG-100-H-AB Features

IP67 rated potted metal housing for outdoor use.
Delivers 27-56VDC output at 2.1A constant current.
Supports 0-10V and PWM dimming via isolated terminals.
Accepts wide 85-305VAC input voltage range.
Relies on passive convection cooling for thermal management.

XLG-100-H-AB Applications

Outdoor LED street and area lighting.
Industrial high bay and floodlighting.
Dimmable indoor LED luminaires.
Harsh environment LED installations.
Constant current LED strip or module power.

XLG-100-H-AB FAQs

5 frequently asked questions generated from this part’s specifications.

What is the input voltage range for the XLG-100-H-AB?

The XLG-100-H-AB accepts an input voltage range of 85-305VAC.

What output voltage and current does this LED driver provide?

It provides an adjustable output voltage of 27-56VDC at a maximum current of 2.1A.

How is the XLG-100-H-AB dimmed?

The driver supports 3-in-1 dimming via potentiometer, 0-10V DC, and PWM signals using galvanically isolated terminals.

What is the ingress protection rating of the XLG-100-H-AB?

The unit is rated IP67, indicating complete protection against dust and temporary immersion in water.

What cooling method is used for thermal management?

The driver utilizes passive convection cooling without the need for active fans.
