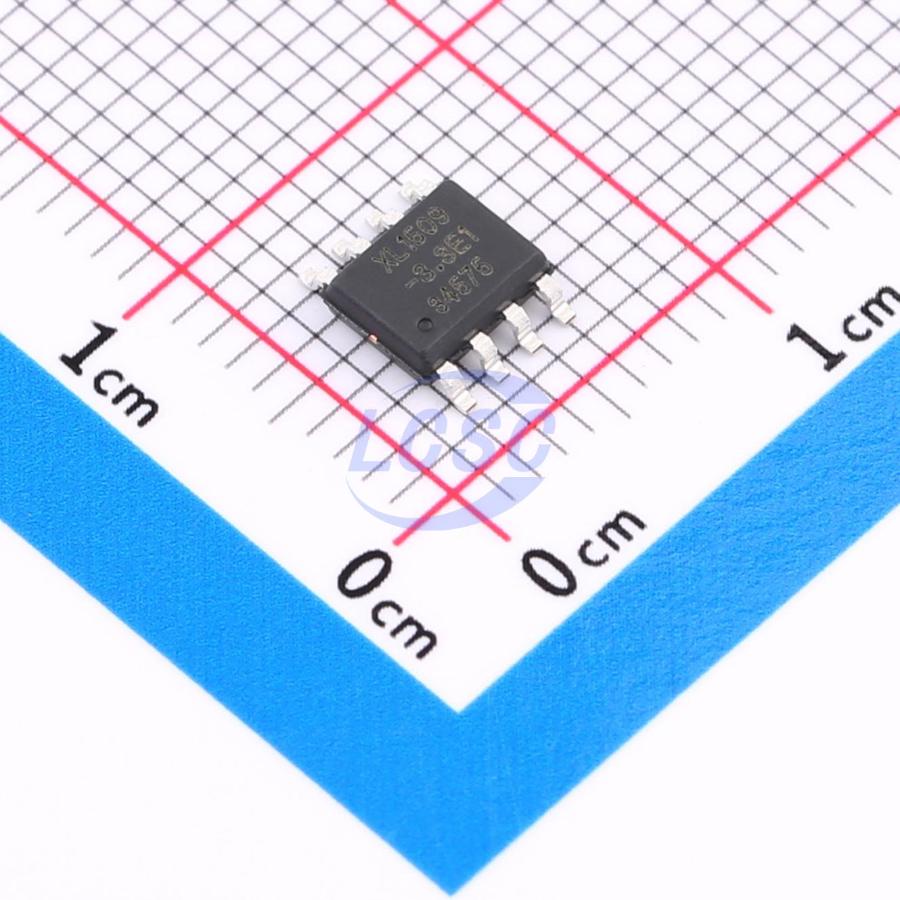

The XLSEMI XL1509-3.3E1 is a fixed-frequency PWM buck DC/DC converter designed to provide a stable 3.3V output. It is suitable for general-purpose step-down power supply applications, offering a maximum output current of 2A.
Key electrical specifications include an input voltage range of 4.5V to 40V and a switching frequency of 150kHz. The converter also features a 100% maximum duty cycle and includes internal thermal and current limit protection for enhanced reliability.
This component is well-suited for consumer electronics and networking equipment. Engineers should pay close attention to PCB layout guidelines, particularly ensuring a short ground path away from the Schottky diode to mitigate switching noise. The XL1509-3.3E1 is currently active and widely available with no significant supply chain risks reported.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.12 | $0.12 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The output voltage is 3.3V.
The maximum output current is 2A.
The input voltage range is 4.5V to 40V.
The switching frequency is 150kHz.
The maximum duty cycle is 100%.
RoHS status is unverified.
