| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,020 pcs
|
2020 pcs | On Request | 1 | On Request | On Request | 24+ | On Request | On Request | |
|
2 pcs
|
2 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Interface | |
| Mounting Type | |
| Operating Temperature | |
| Operating Voltage | |
| Supplier Device Package | |
| Supplier Package | |
| Voltage |

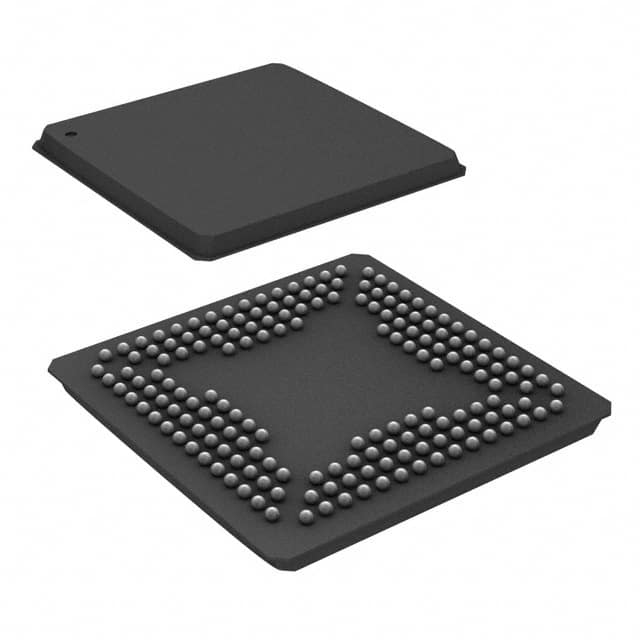

The XIO2200AZGW from Texas Instruments is a specialized interface integrated circuit. It functions as a PCI Express to PCI translation bridge, facilitating communication between these two interface standards. This IC is designed for surface mount applications and comes in a 176-BGA package, specifically the 176-BGA MICROSTAR (15x15) variant.
Key electrical characteristics include a supply voltage range of 1.35V to 3.6V, with common operating voltages of 3.30V and 1.50V. The device operates reliably within a temperature range of 0°C to 70°C. The interface type is PCI.
This component is suitable for designs requiring the integration of PCI Express with legacy PCI systems. Its surface mount package and specific BGA form factor are important considerations for board layout and assembly processes. The XIO2200AZGW is identified by its part number and manufacturer, Texas Instruments, and is available through various distributors.
| Qty | Low | High |
|---|---|---|
| 1+ | $6.39 | $6.39 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The XIO2200AZGW operates with supply voltages of 3.30 V and 1.50 V, and has a range of 1.35 V to 3.6 V.
The operating temperature range for the XIO2200AZGW is 0°C to 70°C.
The XIO2200AZGW is available in a 176-BGA package, specifically 176-LFBGA and 176-BGA MICROSTAR (15x15).
The XIO2200AZGW is RoHS3 Compliant.
