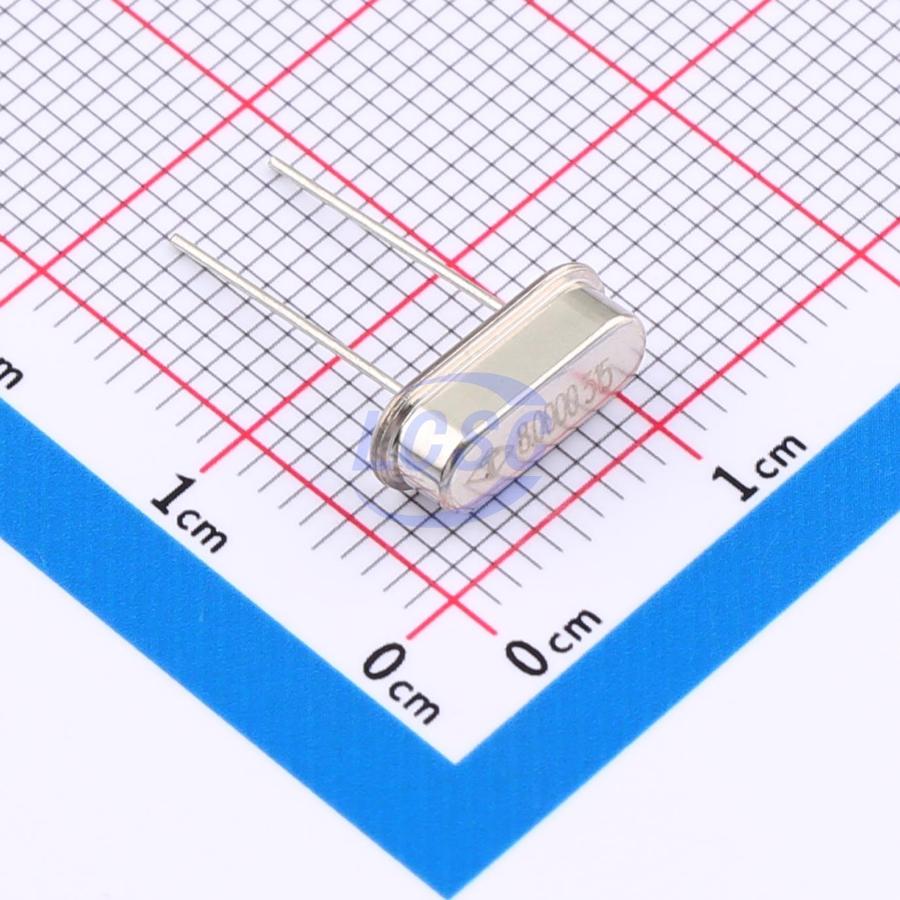

XIHCELNANF-8MHZ The Taitien XIHCELNANF-8MHZ is an 8MHz through-hole crystal oscillator. It features a load capacitance of 20pF and operates within a temperature range of -40°C to +85°C.
Mfr Part #:

XIHCELNANF-8MHZ

Available from 1 distributors
Mfr Name: Taitien
Taitien
The Taitien XIHCELNANF-8MHZ is an 8MHz through-hole crystal oscillator. It features a load capacitance of 20pF and operates within a temperature range of -40°C to +85°C.
✓ Total Stock: 146 pcs

XIHCELNANF-8MHZ Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
PROSOFT ELECTRONICS ✓
Non-Authorised Inventory information
146 pcs
On Request
146 pcs On Request 1 On Request On Request 24+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

XIHCELNANF-8MHZ Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Frequency
Frequency Stability
Frequency Tolerance
Load Capacitance
Mounting Type
Operating Temperature
Type
View Similar Products (0)

XIHCELNANF-8MHZ Description

Short technical summary and product information.

The Taitien XIHCELNANF-8MHZ is a through-hole crystal oscillator designed for electronic circuits requiring a stable frequency reference. It operates at a nominal frequency of 8MHz with a load capacitance of 20pF. The device offers a frequency tolerance of ±30ppm and a frequency stability of ±30ppm, ensuring reliable performance.



This crystal oscillator is housed in an HC-49S package and is suitable for through-hole mounting. It operates across a wide temperature range of -40°C to +85°C, making it adaptable to various environmental conditions. The XIHCELNANF-8MHZ is a component from Taitien, a manufacturer known for its frequency control products.

XIHCELNANF-8MHZ Quick Information

Product Type: Crystal Oscillator
Series: XIHCELNANF
Canonical Name: Taitien XIHCELNANF-8MHZ Through Hole Crystal Oscillator
Subcategory: Oscillators

XIHCELNANF-8MHZ Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

XIHCELNANF-8MHZ Features

  • 8MHz nominal frequency output.
  • ±30ppm frequency tolerance.
  • ±30ppm frequency stability.
  • 20pF load capacitance.
  • -40°C to +85°C operating temperature range.

XIHCELNANF-8MHZ Applications

  • Provides stable clock signals for microcontrollers.
  • Supports precise timing circuits in industrial gear.
  • Enables accurate synchronization in communication modules.
  • Integrates easily into legacy through-hole PCB layouts.
  • Stabilizes timing oscillators in automotive control units.

XIHCELNANF-8MHZ FAQs

6 frequently asked questions generated from this part’s specifications.
What is the operating frequency of the XIHCELNANF-8MHZ?

The operating frequency is 8MHz.

What is the load capacitance for the XIHCELNANF-8MHZ?

The load capacitance is 20pF.

What is the frequency tolerance of this crystal oscillator?

The frequency tolerance is ±30ppm.

What is the operating temperature range for the XIHCELNANF-8MHZ?

The operating temperature range is -40°C to +85°C.

What type of package is the XIHCELNANF-8MHZ in?

It is in an HC-49S package.

How is the XIHCELNANF-8MHZ mounted?

It is a through-hole mounted component.
