| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
80 pcs
|
80 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| CCT (K) | |
| CRI (Color Rendering Index) | |
| Color | |
| Configuration | |
| Current | |
| Lens Type | |
| Lumens | |
| Luminous Flux @ Current | |
| Storage Temperature | |
| Tape & Reel | |
| Temperature | |
| Type | |
| Voltage |

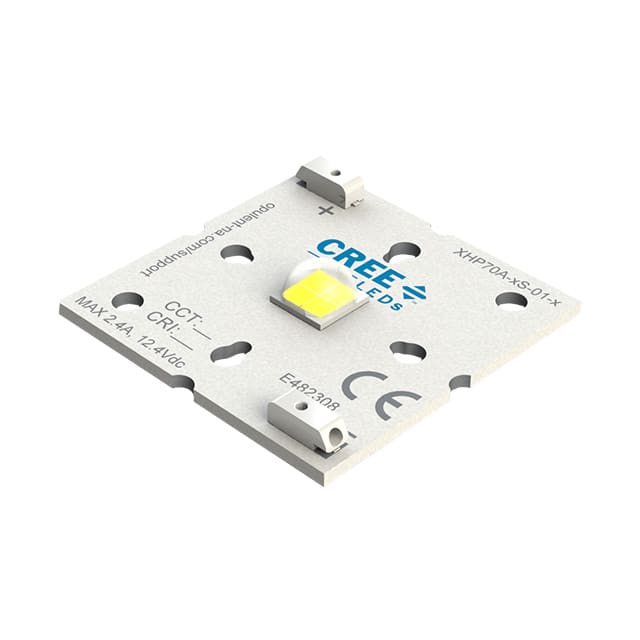

The New Energy XHP70A-0S-01-0D0BN450E is a high-performance LED module designed for rapid integration into lighting fixtures. This square module features a 5000K Correlated Color Temperature (CCT) and a Color Rendering Index (CRI) of 70, providing cool white illumination.
With a nominal operating current of 1.05A, the module delivers a typical luminous flux of 1710 lumens and an efficacy of 140 lumens per watt. The operating voltage is 11.6V, with a nominal power consumption of 12.1W and a maximum of 30W. The module dimensions are 36.83mm by 36.83mm.
Designed for ease of use, this LED module includes an integrated thermal interface material and is configured for off-the-shelf optics. It is suitable for various applications including streetlights, high bays, and architectural lighting, accelerating the design process from prototype to finished product.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The CCT is 5000K 5-Step MacAdam Ellipse.
The typical luminous flux is 1710lm at 1.05A.
The operating voltage is 11.6V.
The dimensions are 36.83mm L x 36.83mm W.
The RoHS status is RoHS3 Compliant.
The MSL is 1 Unlimited.
