Mfr Part #:

XH5F-5015-N

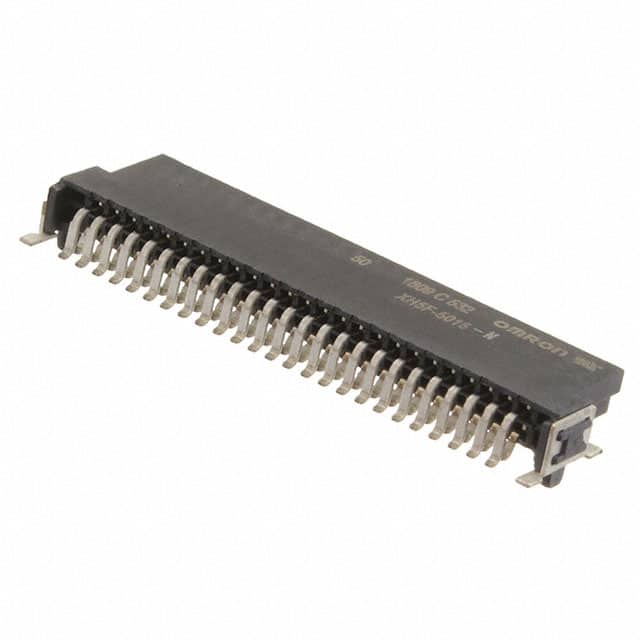

Name: XH5F-5015-N
Brand: Omron
SKU: XH5F-5015-N

Mfr Name: Omron

Description:

SOCKET, RIGHT-ANGLE, SMT PINS

Stock on Request

XH5F-5015-N Description

Short technical summary and product information.

SOCKET, RIGHT-ANGLE, SMT PINS

Mfr Standard Lead Time: 12 weeks (varies by distributor)

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Category	Headers, Receptacles, Female Sockets
Manufacturer Name	Omron
Connector Type	Socket
Contact Finish	Tin
Contact Type	Female Socket
Current Rating (Amps)	1A
Fastening Type	Push-Pull
Features	Board Guide, Solder Retention
Insulation Color	Black
Insulation Height	0.146" (3.70mm)
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount, Right Angle
Number of Positions	50
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature	-55°C ~ 105°C
Pitch	0.050" (1.27mm)
Row Spacing	0.050" (1.27mm)
Style	Board to Board or Cable
Termination	Solder
Voltage Rating	100VAC
