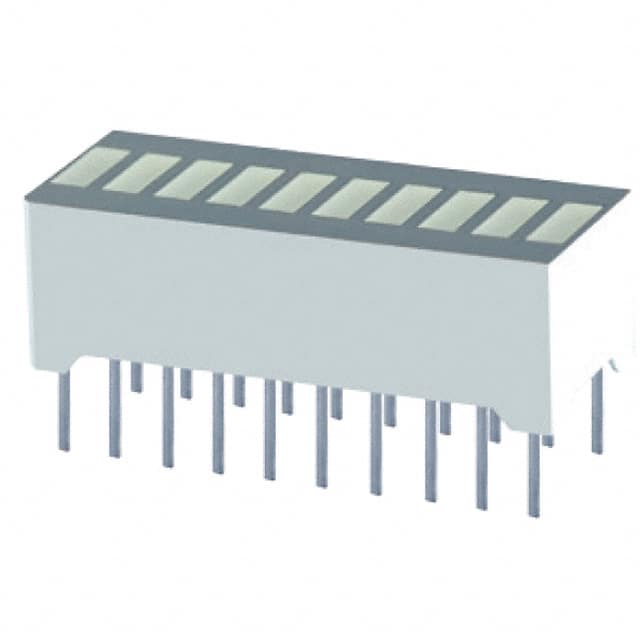

XGUGX10D The SunLED Corporation XGUGX10D is a 10-segment green bar graph array with a typical forward voltage of 2V and 25mA forward current. It is designed for through-hole mounting.
Mfr Part #:

XGUGX10D

Available from 1 distributors
Mfr Name: SunLED Corporation
SunLED Corporation
The SunLED Corporation XGUGX10D is a 10-segment green bar graph array with a typical forward voltage of 2V and 25mA forward current. It is designed for through-hole mounting.
✓ Total Stock: 899 pcs
$ Price Range: $0.99

XGUGX10D Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Braun Electronic Components ✓
Non-Authorised Inventory information
899 pcs
On Request
899 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

XGUGX10D Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Capacitance
Color
Configuration
Current
Forward Current
Lens Size
Lens Style
Millicandela Rating
Mounting Type
Operating Temperature
Power Dissipation
Reverse Current
Storage Temperature
Voltage Rating
Wavelength
View Similar Products (0)

XGUGX10D Description

Short technical summary and product information.

The XGUGX10D from SunLED Corporation is a 10-segment bar graph array with a green emitting color. This component features a robust package with uniform light disbursement, making it ideal for backlighting logos or icons and flush mounting applications.



Key electrical specifications include a typical forward voltage of 2V at 10mA and a maximum forward current of 25mA. The peak emission wavelength is 565nm. The component has a typical capacitance of 15pF at 0V and 1MHz.



Designed for through-hole mounting, the XGUGX10D operates within a temperature range of -40°C to +85°C. Its standard configuration includes a gray face with white segments. The RoHS status is compliant.

XGUGX10D Quick Information

Product Type: Bar Graph Array
Canonical Name: XGUGX10D 10 Segment Green Bar Graph Array
Subcategory: Bar Graph Array

XGUGX10D Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

XGUGX10D Estimated Pricing

Qty Low High
1+ $0.99 $0.99

Estimated market price range - modelled values for guidance only, not live distributor offers.

XGUGX10D Features

  • 10-segment green bar graph array.
  • Typical forward voltage is 2V.
  • Maximum forward current is 25mA.
  • Peak emission wavelength at 565nm.
  • Through-hole mounting design.

XGUGX10D Applications

  • Ideal for backlighting logos.
  • Suitable for icon illumination.
  • Excellent for flush mounting.
  • Used for visual indication arrays.

XGUGX10D FAQs

4 frequently asked questions generated from this part’s specifications.
What is the typical forward voltage for the XGUGX10D?

The typical forward voltage for the XGUGX10D is 2V at 10mA.

What is the peak emission wavelength of the XGUGX10D?

The peak emission wavelength of the XGUGX10D is 565nm.

What is the operating temperature range for this bar graph LED?

The operating temperature range for the XGUGX10D is -40°C to +85°C.

How is the XGUGX10D mounted?

The XGUGX10D is designed for through-hole mounting.
