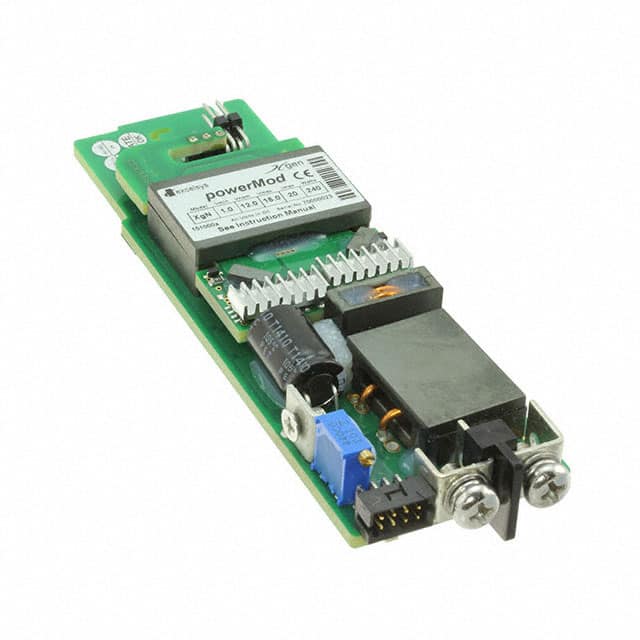

The Advanced Energy XGN is a high-reliability DC output module designed for demanding applications. Part of the Excelsys XF Series, it delivers up to 240W of power with a nominal output voltage of 12V, adjustable within a range of 6.0V to 15.0V. The module supports a maximum output current of 20A.
Key features include remote on/off control and remote sense functionality, allowing for greater system integration and performance optimization. The XGN operates with an input frequency range of 47 to 440 Hz and boasts an efficiency of up to 90%. It is designed for rugged environments, with conformal coating and anti-vibration compound as standard, and operates across a wide temperature range of -55 to 70°C.
This module is suitable for harsh industrial electronics, fixed and mobile radar systems, communications equipment, military electronics, and test and measurement applications. It meets MIL-STD-810G for shock and vibration and is EMC characterized per MIL-STD-461F (CE101 and CE102). Certifications include UL60950, UL62368, and SEMI F47.
The XGN module has a nominal output voltage of 12V, which is adjustable within a range of 6.0V to 15.0V.
The maximum output current for the XGN module is 20A.
The operating temperature range for the XGN module is -55 to 70°C.
Yes, the XGN module features remote on/off control.
The XGN module offers ultra-high efficiency, up to 90%.
