| Category | |
| Manufacturer Name | |
| Current | |
| Dimensions | |
| Efficiency | |
| Features | |
| Height | |
| Input Frequency | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| SVHC Present | |
| Type | |
| Voltage |

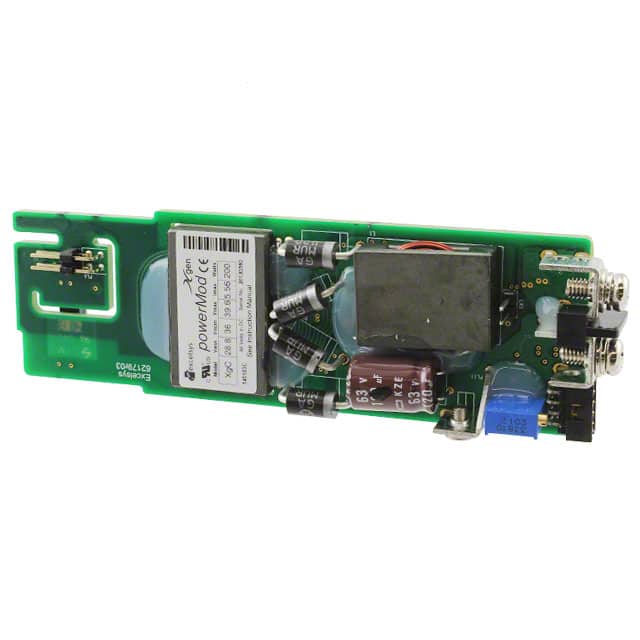

The Advanced Energy XF Series XGC is a configurable DC power supply module providing a nominal output voltage of 36V with an adjustable range of 28.8V to 39.6V. It delivers up to 5.6A of current, resulting in a maximum output power of 200W. This module is designed for high reliability and MIL-COTS applications, featuring conformal coating and ruggedization as standard.
Key features include remote on/off control and user adjustability, allowing for flexible system integration. The XF series operates across a wide input frequency range of 47 to 440 Hz and boasts an ultra-high efficiency of up to 90%. Its compact 1U height (40 mm) and dimensions of 268 mm x 127 mm make it suitable for space-constrained designs. The module is certified to MIL-STD-810G for shock and vibration and MIL-STD-461F for EMC.
Typical applications for the XF series include harsh industrial electronics, fixed and mobile radar systems, communications equipment, military electronics, and test and measurement instrumentation. The module is designed for operation in demanding environments with an operating temperature range of -55 to 70°C.
The nominal output voltage is 36V.
The maximum output current is 5.6A.
The maximum power output is 200W.
Key features include Remote On/Off and User Adjustable settings.
The operating temperature range is -55 to 70°C.
The XF Series supports an input frequency range of 47 to 440 Hz.
The XF Series offers ultra-high efficiency, up to 90%.
