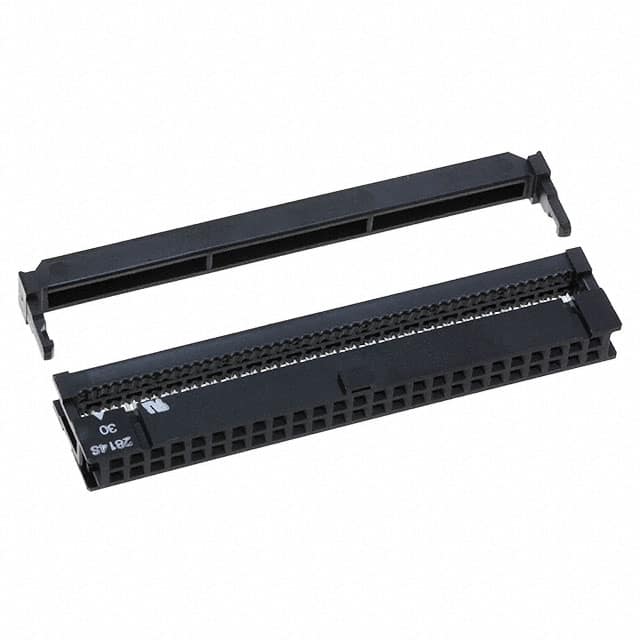

XG4M-5030-T 50-position IDC receptacle connector from Omron, designed for 28 AWG ribbon cable with gold-plated contacts and 2.54mm pitch.
Mfr Part #:

XG4M-5030-T

Available from 1 distributors
Mfr Name: Omron
Omron
50-position IDC receptacle connector from Omron, designed for 28 AWG ribbon cable with gold-plated contacts and 2.54mm pitch.
✓ Total Stock: 25 pcs
$ Price Range: $2.81 - $4.57

XG4M-5030-T Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
ADI/AAR OEM Supply ✓
Non-Authorised Inventory information
25 pcs
On Request
25 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

XG4M-5030-T Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Cable Termination
Color
Connector Type
Contact Finish
Contact Finish Thickness
Contact Material
Contact Resistance
Contact Type
Features
Housing Material
Insulation Resistance
Lead Style
Military Grade
Mounting Type
Number of Positions
Number of Rows
Operating Temperature Range
Pitch
Rated Current
Rated Voltage
Row Spacing
Termination Style
Wire Gauge
Wire Type
View Similar Products (0)

XG4M-5030-T Description

Short technical summary and product information.

The Omron XG4M-5030-T is a 50-position IDC receptacle connector from the XG4M series. It features a free-hanging (in-line) mounting style with 2 rows of contacts at 2.54mm pitch and 2.54mm row spacing. The contacts are female sockets with gold plating (0.15µm thickness) on brass base. It is designed for termination of 28 AWG ribbon cable via IDC (Insulation Displacement Connection). The connector is rated for 1 A per contact and 250 VAC, with contact resistance of 20 mΩ max and insulation resistance of 1000 MΩ min. Operating temperature range is -55°C to 105°C. The housing is made of fiber-glass reinforced PBT resin with UL94 V-0 flammability rating. It includes features such as feed through, polarizing key, and strain relief. This connector conforms to MIL-C-83503 standards. It is RoHS compliant.

XG4M-5030-T Quick Information

Product Type: Rectangular Connector
Series: XG4M
Canonical Name: Omron XG4M-5030-T 50 Position IDC Receptacle
Subcategory: IDC Receptacle Connector

XG4M-5030-T Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

XG4M-5030-T Estimated Pricing

Qty Low High
1+ $4.57 $4.57
10+ $4.16 $4.16
25+ $3.77 $3.77
40+ $3.58 $3.58
120+ $3.48 $3.48
280+ $3.28 $3.28
520+ $3.14 $3.14
1,000+ $3.00 $3.00
2,520+ $2.81 $2.81

Estimated market price range - modelled values for guidance only, not live distributor offers.

XG4M-5030-T Features

  • 50-position IDC receptacle for 28 AWG ribbon cable.
  • Gold-plated contacts for reliable signal transmission.
  • Rated for 1 A per contact and 250 VAC.
  • Free-hanging design with strain relief and polarizing key.
  • Conforms to MIL-C-83503 standards.

XG4M-5030-T Applications

  • Mass termination of flat ribbon cables.
  • Ideal for MIL-spec connector applications.
  • Used in board-to-cable interconnections.
  • Suitable for industrial control equipment.
  • Perfect for data communication systems.

XG4M-5030-T FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the XG4M-5030-T have?

50 positions in 2 rows.

What is the pitch of this connector?

2.54mm (0.100").

What is the current rating per contact?

1 A per contact (depends on mating socket).

What is the voltage rating?

250 VAC.

What is the mounting type?

Free hanging (in-line) with IDC termination.

What is the operating temperature range?

-55°C to 105°C.

What is the contact finish?

Gold plating, 0.15µm thickness.
