Mfr Part #:

XG4H-1631

Name: XG4H-1631
Brand: Omron
SKU: XG4H-1631

Mfr Name: Omron

Description:

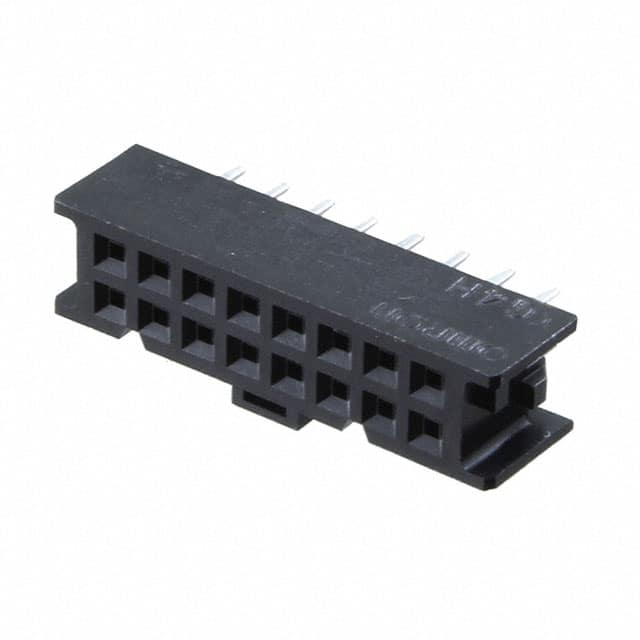

CONN RCPT 16POS 0.1 GOLD PCB

Stock on Request

XG4H-1631 Description

Short technical summary and product information.

CONN RCPT 16POS 0.1 GOLD PCB

Mfr Standard Lead Time: 12 weeks (varies by distributor)

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Category	Headers, Receptacles, Female Sockets
Manufacturer Name	Omron
Connector Type	Receptacle
Contact Finish	Tin
Contact Finish Thickness	5.90碌in (0.150碌m)
Contact Length	0.122" (3.10mm)
Contact Type	Female Socket
Current Rating (Amps)	3A
Fastening Type	Latch Holder
Features	Polarizing Key
Insulation Color	Black
Insulation Height	0.283" (7.19mm)
Mated Stacking Heights	9.7mm, 10.1mm
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	16
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature	-55°C ~ 105°C
Pitch	0.100" (2.54mm)
Row Spacing	0.100" (2.54mm)
Style	Board to Board
Termination	Solder
Voltage Rating	300VAC
